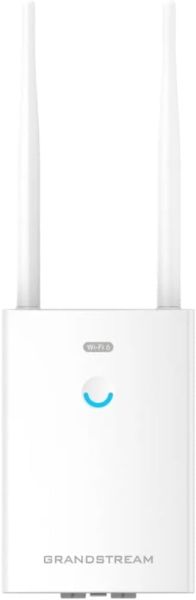

نقطة وصول خارجية 2×2:2 بعيدة المدى من Grandstream GWN7660LR WiFi6، حتى 250 مترًا، جيجابت مزدوج PoE

General / Overview

• Model: GWN7660LR (Long-Range WiFi 6 AP)

• Aggregate wireless throughput: 1.77 Gbps

• Dual-band, MU‑MIMO 2×2:2 with DL/UL OFDMA

• Self-adapting to PoE / PoE+

• Supports 500+ concurrent clients

• Ideal coverage: up to ~250 meters

• Embedded controller supports up to 50 APs; supports cloud & on-prem management

• Security: secure boot, firmware lockdown, unique certificate, random default password

• Antennas: 2 detachable dual-band external antennas

Wireless / Radio / Antennas

• Standards: IEEE 802.11 a / b / g / n / ac / ax

• Antenna gain: ~3.5 dBi (2.4 GHz & 5 GHz)

• Frequency bands: 2.4 GHz (2412–2484 MHz), 5 GHz (5180–5825 MHz, region dependent)

• Channel bandwidth: 2.4 GHz – 20 / 40 MHz; 5 GHz – 20 / 40 / 80 MHz

• Max transmit power: ~30 dBm (2.4 GHz), ~26 dBm (5 GHz)

• Receiver sensitivity: varies by data rate / modulation

• Mesh support via 5 GHz

Ports / Interfaces

• 2 × auto-sensing Gigabit Ethernet ports (support PoE / PoE+)

• Reset pinhole

Power / Consumption

• PoE / PoE+ support (802.3af / 802.3at)

• Maximum power draw: ~12.9 W

Performance / Coverage / Features

• Coverage: up to ~250 meters in open environment

• Supports up to 32 SSIDs (16 per radio)

• Concurrent clients: 500+

• QoS / traffic features: 802.11e / WMM, VLAN, TOS

• Protocols: IPv4, IPv6, 802.1Q/p/x, 802.11e/WMM
