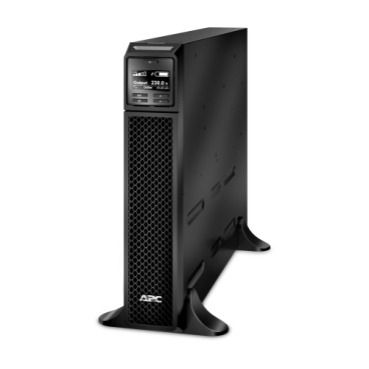

APC Smart-UPS On-Line SRT1000XLI – 1000VA/1000W Double-Conversion Online UPS

Overview:
The APC SRT1000XLI is a high-density, double-conversion online Uninterruptible Power Supply (UPS) designed to provide reliable power protection for critical electronics and IT equipment. With scalable runtime, robust performance, and flexible mounting options, this model is ideal for servers, network devices, and sensitive electronics in demanding environments.

Key Features:

• Power Capacity: 1000 VA / 1000 W

• UPS Type: Double-conversion online

• Input Voltage: 230V (Compatible with 220V / 240V)

• Output Voltage: 230V (Configurable to 220V / 240V)

• Input Connection: IEC 60320 C14

• Output Connections: 6 × IEC 60320 C13

• Cable Length: 1.8 m

Runtime & Battery:

• Typical Runtime at Full Load (1000W): 8 minutes 27 seconds

• Battery Type: Lead-acid, 48V

• Recharge Time: 3 hours

• Extended Runtime Support: Yes

• Replacement Battery: APCRBC155

• Battery Life Expectancy: 3–5 years

Design & Build:

• Form Factor: Rack-mounted (kit required) or vertical

• Color: Black

• Dimensions (H × W × D): 43.2 × 8.5 × 50.5 cm

• Weight: 30.5 kg

• Mounting Options: Rack-mountable, no preference

Performance & Protection:

• Waveform Type: Sine wave

• Output Frequency: 50/60 Hz ±3 Hz (sync to mains)

• Harmonic Distortion:

• Crest Factor: 3:1

• Surge Protection: 432 Joules

• Bypass: Built-in automatic bypass

• Emergency Power Off (EPO): Yes

Environmental & Compliance:

• Operating Temperature: 0 to 40 °C

• Storage Temperature: -20 to 50 °C

• Relative Humidity: 0–95% (non-condensing)

• Altitude: Operates up to 10,000 ft

• Noise Level: 50 dBA

• Certifications: CE, EAC, UK PSTI

• Standards Compliance:

  • EN/IEC 62040-1:2019/A11:2021

  • EN/IEC 62040-2:2006/AC:2006

  • EN/IEC 62040-2:2018

Included Accessories:

• USB cable

• Communication cable

• CD with software

• Documentation CD

• Installation guide

• Removable support feet

• Warranty card

Product Code: W125871311
Manufacturer: APC by Schneider Electric
Range: Smart-UPS On-Line
