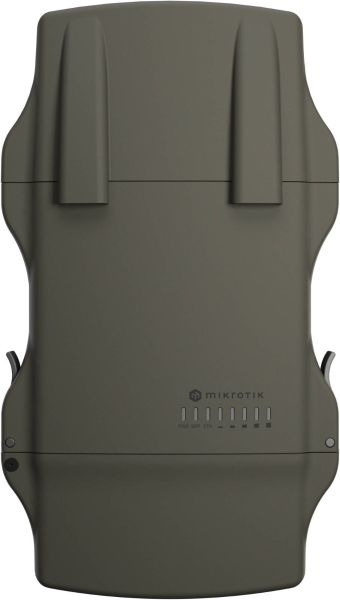

MikroTik NetMetal ax Outdoor Dual‑Band WiFi 6 Access Point / CPE L23UGSR-5HaxD2HaxD-NM

In Stock

Warranty: 1 Year

SKU

L23UGSR-5HaxD2HaxD-NM

BHD 84.14

Original 100% Visit Store →

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

More Information

Dual‑band WiFi 6 (802.11ax) with 2×2 MIMO in 2.4 GHz and 5 GHz
1 × Gigabit Ethernet + 1 × 2.5G SFP port for high‑speed backhaul
Powered via 12–28 V DC jack or passive PoE 18–28 V
Max power consumption up to 25 W, passive cooling
Outdoor-ready IP66 enclosure rated for –40 °C to +70 °C
Includes SIM slot, MiniPCIe slot, and USB interface for expansion
Certified (CE, FCC, IC, RoHS) with robust performance (bridging/routing throughput)

GTIN: 4752224009234

Manufacturer: Mikrotik

Colour: Black

Weight: 1.300000

Warranty: 1 Year

CPU / Firmware

Dual-core IPQ‑5010, 800 MHz
RouterOS v7, License Level 4

Memory / Storage

256 MB RAM
128 MB NAND flash

Wireless / Radio

2.4 GHz: 2×2 MIMO, 802.11b/g/n/ax, up to 574 Mbps
5 GHz: 2×2 MIMO, 802.11a/n/ac/ax, up to 2400 Mbps
External antennas required (connectors on board)

Ports & Interfaces

1 × Gigabit Ethernet RJ45
1 × SFP (supports up to 2.5 G)
1 × Nano SIM slot
1 × MiniPCIe slot
1 × USB Type A (up to 1.5 A)
Extras: PCB temp sensor, voltage monitor, beeper

Power / Consumption

DC jack input: 12–28 V
Passive PoE-in: 18–28 V
Maximum consumption: 25 W (typical base ~12 W)
Passive cooling (fanless)

Environmental / Certifications

Operating temperature: –40 °C to +70 °C
Ingress Protection: IP66
Certifications: CE, FCC, IC, RoHS, EAC

Performance

Bridging (fast path) throughput: ~3334.7 Mbps (1518 byte)
Routing (fast path) throughput: ~3399.9 Mbps (1518 byte)
