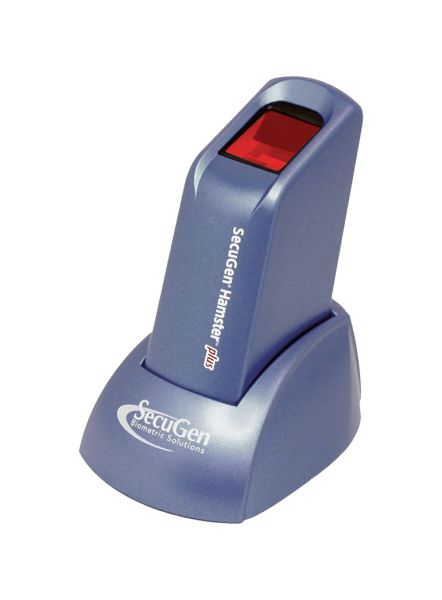

SecuGen Hamster Plus HSDUO3P fingerprint reader | HSDUO3P

TECHNICAL SPECIFICATION

Product

• Model: Hamster Plus

• Fingerprint Sensor (Type): SDU03P (contact)


• Resolution: 500 DPI

• Image Size: 260 x 300 pixels

• Image Area: 14.6 mm x 17.9 mm

• Platen Size: 13.2 mm x 15.2 mm

• Gray Scale: 256 levels (8-bit)

Hardware

• Light Source: LED

• Smart Capture Speed: 0.2 ~ 0.5 seconds

• Biometric Standards: INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4

Dimensions & Weight

• With Stand: 53 x 73 x 84 mm

• Without Stand: 27 x 40 x 73 mm

• Weight with Stand: 165 g

• Weight without Stand: 100 g

Cabling

• Cable Length: 1500 mm

Environment

• Operating Temperature: -20° ~ 65°C

• Operating Humidity: 90% or less RH, noncondensing

Power & Interface

• Interface: USB 1.1 Full-Speed, USB 2.0 Hi-Speed

• Supply Voltage: 5V (via USB)

• Current Consumption: 140 mA (max.)

Compliance & Protection

• Certifications: FCC, CE, KC, RoHS, WHQL

• Dust/Water Resistance: No

Other Features (when used with SecuGen SDKs)

• Auto-On™

• Smart Capture™

• Device Recognition™

• 360 Degree Fingerprint Rotation

Warranty

• One year limited

Supported Operating Systems

• Windows 11 / 10 / 8.1 / 7

• Windows Server 2022 / 2019 / 2016 / 2012 / 2008 R2

• Android 3.1 and above

• Linux
