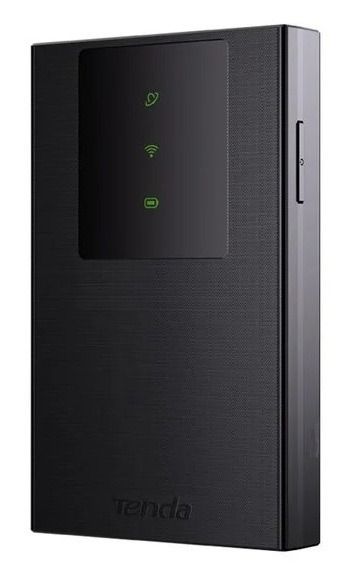

Tenda 4G180 High-Speed 4G LTE Router, v4.0, 300Mbps High Speed Internet, Wi-Fi, Dual Antennas, Easy Setup

Tenda 4G180 High-Speed 4G LTE Router, v4.0, 300Mbps High Speed Internet, Wi-Fi, Dual Antennas, Easy Setup

• Device Type: It’s a 4G LTE router.

• Wi-Fi Standards: It supports IEEE 802.11b/g/n with a wireless speed of up to 300Mbps on the 2.4GHz band.

• Cellular Connectivity: The router connects to 4G LTE networks (FDD/TDD), offering download speeds up to 150Mbps and upload speeds up to 50Mbps.

• Ports:

  • One WAN/LAN port (10/100Mbps).

  • Three LAN ports (10/100Mbps) for local devices.

  • One micro USB port for power.

  • One SIM card slot (supports both 3V and 1.8V SIM cards).

• Network Support: The device supports NAT, DHCP, and Static IP configuration. It also works with both IPv4 and IPv6.

• Wireless: It operates on the 2.4GHz frequency, with WPA-PSK and WPA2-PSK wireless security for safe connections. It also supports WDS (Wireless Distribution System) for extended wireless range.

• Power Supply: The router is powered via a micro USB port, requiring 9V/1A.

• Antenna: It comes with two external, detachable antennas.

• Dimensions: The router measures 177mm in length, 102mm in width, and 23.5mm in height.

• Operating Environment: It can function within a temperature range of 0°C to 40°C and humidity levels between 10% and 90% (non-condensing).

• Additional Features: You can send/receive SMS messages through the router, and it supports remote management. The setup process is simple through a web interface or a mobile app.

Technical Specifications

Hardware

• 4G Category: LTE CAT.4

• 4G/3G Standards: FDD LTE, TDD-LTE, WCDMA

• Working Bands:

  • 4G FDD-LTE: B1/B3/B5/B7/B8/B20

  • 4G TDD-LTE: Band38/Band40

  • 3G WCDMA: B1/B5/B8

• Max 4G Speed:

  • Download: 150Mbps

  • Upload: 50Mbps

• Wi-Fi Standards: 802.11b/g/n/ac

• Wi-Fi Frequency: 2.4GHz

• Wi-Fi Speed:

  • Wi-Fi 6: 2.4GHz: up to 286Mbps

• Wi-Fi Transmit Power: 2.4GHz: up to 20dBm

• USB Port: USB-C

• SIM Slot: Nano SIM

• Button: Power on/off, Reset hole

• Antennas:

  • 2 Internal 4G/3G Antennas

  • 1 Internal Wi-Fi Antenna

• Indicators: 3 LED indicators for internet, Wi-Fi, and battery status

• Battery:

  • Type: Li (rechargeable)

  • Capacity: 3.8V, 2100mAh, 7.98Wh

  • Working time: up to 8.5 hours (depending on the network)

  • Standby time: up to 168 hours (depending on the network)

Software

• WAN Type: 4G/3G

• 4G/3G Features:

  • Auto-APN

  • Auto dial-up

  • Roaming

  • SMS (Send/Receive/Delete)

  • USSD

  • Data limited

  • Power save

  • PIN management

  • USB Tethering

• Wi-Fi Functions: Broadcast and Hide Wi-Fi name

• Wireless Security: WPA3-PSK/WPA2-PSK, KWPA-PSK/WPA2-PSK

• Software Features:

  • Local management

  • DHCP Server

  • QoS

  • Upgrade firmware from local or OTA

  • IPv4/IPv6 support

Certifications

• CE Certified

• ROHS Certified

• IPv6 Host

Working Environment

• Operating Temperature: 0°C to 35°C

• Humidity: 5% to 90% RH, non-condensing

Package Contents

• 1 Mobile Wi-Fi

• 1 USB-C Cable

• 1 Rechargeable Battery

• 1 Quick Installation Guide
