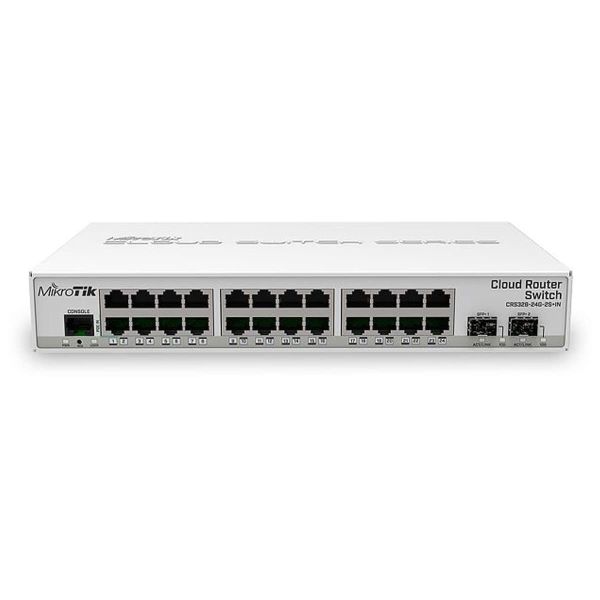

MikroTik CRS326-24G-2S+IN 24-Port Gigabit Managed Switch with 2 × 10G SFP+, Dual Boot RouterOS/SwOS
-
24 × Gigabit RJ-45 ports + 2 × 10G SFP+ uplinks for high-speed network backhaul.
-
Managed switch with dual-boot RouterOS or SwOS for flexible control.
-
ARM-based CPU (98DX3236 - 800 MHz) with 512 MB RAM and 16 MB Flash storage.
-
Compact desktop form-factor (285 × 144 × 44 mm), passive cooling (fanless).
-
Supports 10-30 V DC input via jack or passive PoE-IN; max power draw ~21 W.
-
Advanced switching features: VLANs, MAC filtering, port mirroring, bandwidth management.
-
Operating temperature rated from –40 °C to +60 °C; certified CE, EAC, RoHS, IP20.
-
Model code: CRS326‑24G‑2S+IN
-
CPU: 98DX3236 - 800 MHz
-
CPU core count: 1 core
-
RAM: 512 MB
-
Flash storage: 16 MB
-
Ethernet ports: 24 × 10/100/1000 Mbps (RJ‑45)
-
SFP+ ports: 2 × SFP+ cages (supports both 1.25 Gb SFP and 10 Gb SFP+)
-
Operating system (dual‑boot): RouterOS (License Level 5) or SwOS
-
Supported input voltage: 10‑30 V DC via DC jack AND 10‑30 V via passive PoE‑IN
-
Number of DC inputs: 2 (DC jack + PoE‑IN)
-
Max power consumption: ~21 W
-
Cooling type: Passive / fanless
-
Operating temperature (tested): ‑40 °C to +60 °C
-
Certifications & approvals: CE, EAC, RoHS; Enclosure rating: IP20
-
Additional managed‑switch features: port‑to‑port forwarding, MAC filtering, VLAN configuration (802.1Q), traffic mirroring, bandwidth limitation, adjustable MAC/IP header fields
