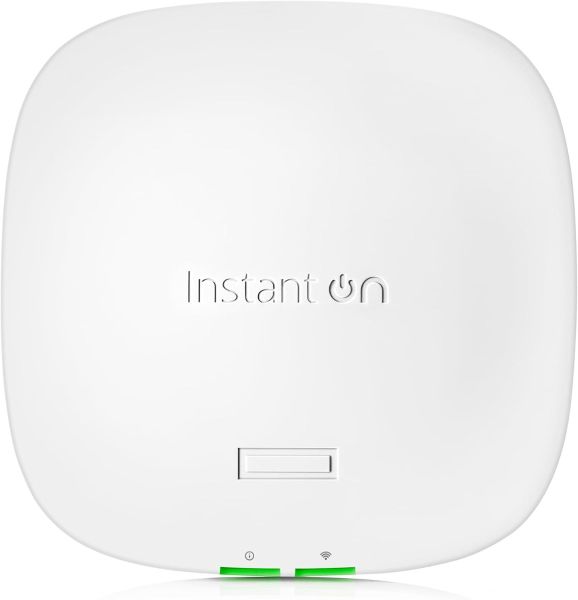

Aruba S1T09A Instant On AP21 Indoor WiFi 6 Dual‑Band 2×2 AP with Gigabit Port & WPA3 Security
التوصيل داخل الإمارات 1-2 يوم عمل
التوصيل خارج الإمارات 3-5 يوم عمل
عروض خاصة
طابعة صور إيpson EcoTank L8100 3 في 1 A4، 22 صفحة/دقيقة بالأبيض والأسود، نظام خزان الحبر، دقة 1200 × 4800 DPI، تطبيق Epson Smart Panel، C11CK94402
طابعة ايبسون ايكو تانك L3250 الكل في واحد، طابعة بخزان حبر، طباعة، نسخ، مسح ضوئي، واي فاي
-
WiFi 6 (802.11ax) dual‑band access point with 2×2 MU‑MIMO, delivering up to ~1.2 Gbps on 5 GHz + 300 Mbps on 2.4 GHz.
-
Gigabit Ethernet uplink with PoE‑in (802.3af Class 3) and optional 12 V DC power.
-
Low power draw: ~ 10.1 W (PoE) / ~ 10.9 W (DC).
-
Integrated antennas with ~ 4.8 dBi gain on 5 GHz and ~ 1.7 dBi on 2.4 GHz.
-
Compact build (145×145×51 mm), lightweight (~ 255 g), wall or ceiling mountable.
-
Supports WPA2/WPA3, Enhanced Open, 802.1X security; guest network options; managed via Aruba Instant On app and cloud.
-
Operating temperature range 0‑40 °C; ideal for small offices, retail, meeting rooms.
-
Includes mounting clip and security slot; status LEDs and reset button for easy management.
Specifications
-
Model: Aruba Instant On AP21 (RW), Part Number S1T09A
-
Wireless Standard: WiFi 6 / 802.11ax (dual‑band 2.4 GHz & 5 GHz)
-
Radio / MIMO: 2×2 MU‑MIMO on both bands
-
Maximum Data Rates:
• 5 GHz band: ~ 1.2 Gbps
• 2.4 GHz band: ~ 300 Mbps -
Antenna Gain: approx. 4.8 dBi on 5 GHz; ~1.7 dBi on 2.4 GHz
-
Maximum Transmit Power: about +21 dBm on both 2.4 & 5 GHz bands (≈ +18 dBm per chain)
-
Ports & Interfaces:
• 1 × Gigabit Ethernet (RJ‑45) uplink port with PoE‑in (802.3af, Class 3)
• Optional DC input (12 V) for units not using PoE in certain bundles
• Reset / LED Status Indicator, Kensington security slot included -
Power Consumption: about 10.1 W via PoE; ~10.9 W via DC in worst‑case conditions
-
Physical Dimensions & Weight: ~ 145 mm × 145 mm × 51 mm (W × D × H); net weight ~ 255 g
-
Mounting Options: Ceiling‑ or wall‑mount clip included
-
Environmental / Operational Conditions: Operating Temperature 0 °C to +40 °C; reliable up to ~ 50 concurrent devices recommended depending on usage
-
Security & Management Features: WPA2 & WPA3 support; Enhanced Open; 802.1X; management via Instant On app and cloud portal; VLAN, guest network options; LED status indicators etc.
