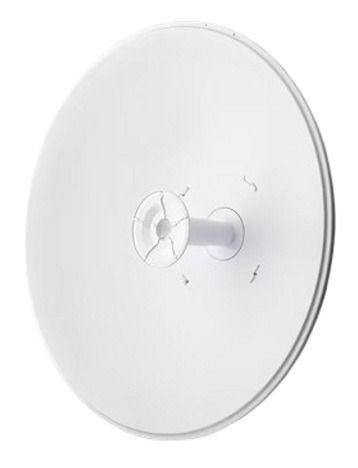

Ubiquiti RD-5G30-LW 30 dBi 5 GHz RocketDish LW Antenna Long-Range PtP Dish

متوفر في المخزن

Warranty: 1 Year

رمز المنتج

RD-5G30-LW

132٫98 US$

Original 100% Visit Store →

30 dBi lightweight parabolic dish antenna designed for high-performance long-range links
Supports 5.1 – 5.9 GHz frequency band
Compact reflector size: 650 × 650 × 386 mm
Total assembled weight: 7.4 kg (mount included)
Narrow beam with ~5.8° HPOL/VPOL beamwidth
Dual linear polarization with ≥35 dB cross-pol isolation
Robust for harsh environments: wind loading 790 N, survivability to 200 km/h
Ships with universal pole mounting kit and Rocket bracket

GTIN: 0810354021954

Manufacturer: Ubiquiti

Model: RD-5G30-LW

Colour: White

Dimensions: 650 × 650 × 386 mm

Weight: 10.000000

Warranty: 1 Year

Specifications

Model: RD-5G30-LW (RocketDish, lightweight version)
Dimensions (assembled): 650 × 650 × 386 mm
Weight (with mount): 7.4 kg
Operating frequency: 5.1 – 5.9 GHz
Antenna gain: 30 dBi
HPOL / VPOL beamwidth (3 dB): ~ 5.8°
Front-to-Back ratio: 30 dB
Max VSWR: 1.6:1
Wind loading: 790 N at 200 km/h
Wind survivability: up to 200 km/h
Polarization: Dual linear (horizontal + vertical)
Cross-polar isolation: ≥ 35 dB
Mounting: Universal pole mount and Rocket bracket included
Standards compliance: ETSI EN 302 326 DN2
Included in package: mounting hardware, pole bracket, antenna feed, protective shroud, stabilizer arms, fasteners
