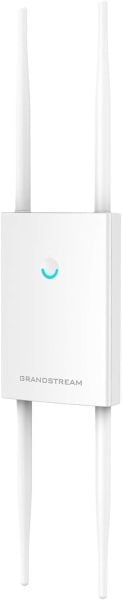

Grandstream GWN7630LR Outdoor Long‑Range WiFi Access Point 2.33 Gbps, 4×4 MU‑MIMO, IP66, 2×Gigabit PoE

Wireless / Radio / Performance

• Standard: IEEE 802.11 a/b/g/n/ac (Wave‑2)

• Dual‑band, 4×4:4 MU‑MIMO on both 2.4 GHz and 5 GHz

• Aggregate Throughput: 2.33 Gbps wireless

• 2.4 GHz Max Data Rate: ~ 600 Mbps

• 5 GHz Max Data Rate: ~ 1,733 Mbps

• SSIDs: Up to 32 total (16 per radio)

• Concurrent Client Devices: 200+ (often cited as up to 250+)

• Coverage / Range: Up to ~300 meters (in ideal conditions)

• Channel Bandwidth:
    • 2.4 GHz: 20 / 40 MHz
    • 5 GHz: 20 / 40 / 80 MHz

• Antennas: 4 detachable / changeable dual‑band omnidirectional antennas

• Transmit Power:
    • 2.4 GHz: up to ~ 27 dBm
    • 5 GHz: up to ~ 25 dBm

Network / Ports / Power

• Network Interfaces: 2 × autosensing 10/100/1000 Base‑T Ethernet ports

• Power over Ethernet: Supports 802.3af / 802.3at (auto‑detection)

• Maximum Power Consumption: 16.5 W

• Auxiliary: 1 × reset pinhole

Security / Features / Management

• Wireless Security: WEP, WPA / WPA2‑PSK, WPA / WPA2 Enterprise, WPA3

• Anti‑hacking features: Secure boot, digital signature lockdown, unique device certificates, random default password

• Quality of Service & Traffic Control: 802.11e / WMM, VLAN, TOS

• Network Protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

• Management Modes: Embedded controller (can manage up to 50 local GWN APs), GWN.Cloud (cloud management), support for on‑premise management

• Mounting Options: Wall mount or pole mount (mounting kits included)

• LED / Indicators: 1 tri‑color status LED

Physical / Environmental

• Mounting kit included: adds to mechanical size (bracket / mounts)

• Operating Temperature: –30 °C to 60 °C

• Storage Temperature: –30 °C to 70 °C

• Humidity: 5% to 95% non‑condensing

• Weatherproof Rating: IP66 (when installed vertically)
