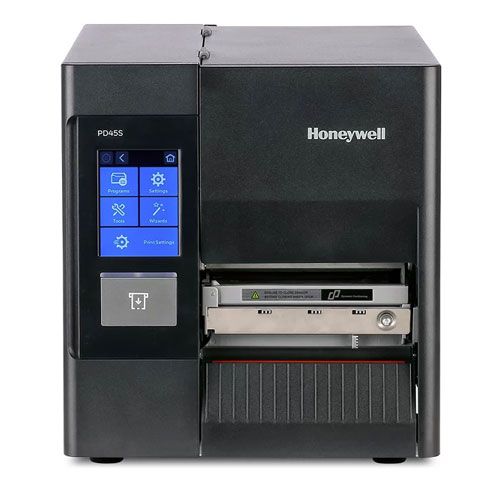

Honeywell PD45S0C Industrial Thermal Transfer & Direct Thermal Label Printer – 4-inch Print Width, 203 dpi, USB / Serial / Ethernet Connectivity, Heavy-Duty Metal Frame

The Honeywell PD45S0C is a high-performance 4-inch industrial label printer designed for continuous heavy-duty operation in manufacturing, logistics, warehousing, healthcare, and transportation environments.

Part of Honeywell’s PD45 Series, the PD45S combines speed, precision, and industrial durability with modern connectivity and a streamlined user interface. It supports both thermal transfer (TT) and direct thermal (DT) print methods, making it suitable for applications ranging from temporary shipping labels to long-life compliance and asset tags.

Industrial Design

The PD45S features an all-metal chassis and side-opening design that withstands industrial environments. Its aluminum die-cast frame provides rigidity, while the clamshell cover offers easy access to media and ribbon paths.

Honeywell’s dual sensor technology (transmissive + reflective) ensures accurate tracking of media gaps and black marks—even with small or irregular labels. The printer can handle labels as narrow as 5 mm with vertical print accuracy within ± 0.5 mm.

Print Quality & Performance

The PD45S0C model uses a 203 dpi (8 dots/mm) printhead and achieves speeds up to 250 mm/s (9.84 in/s). Its optimized heat-balance control maintains sharp contrast even on continuous heavy cycles.

A precision pressure adjustment mechanism ensures even ribbon tension and consistent density across the full 4.25″ (108 mm) print width.

Connectivity & Integration

This variant (suffix 0C) comes equipped with:

• USB 2.0 (Device)

• USB Host Port (for thumb drives)

• RS-232 Serial Port

• Ethernet 10/100 Base-T (LAN)

This allows flexible integration into industrial networks or standalone setups.

The printer supports ZSim II (ZPL II emulation), DPL, and EPL languages, ensuring compatibility with legacy Zebra® or Datamax® systems. It operates on Honeywell Smart Printing Platform, enabling application logic to run directly on the printer without a PC.

Memory & Control

The PD45S0C includes 128 MB Flash and 128 MB DDR3 SDRAM, expandable via USB storage. Internal job management handles complex label templates and multiple print queues efficiently.

Software Compatibility

Compatible with Honeywell PrintSet, NiceLabel, BarTender, SAP via ZSim, and standard Windows®/Linux® print drivers. Remote diagnostics and configuration are available through the embedded web interface or Honeywell Printer Management Software.

Typical Applications

• Warehouse & logistics shipping labels

• Manufacturing part & compliance tags

• Industrial product labeling & pallet IDs

• Healthcare sample & asset tracking

• Automotive & electronics production labeling

Reliability & Maintenance

Designed for minimal downtime, the PD45S uses a tool-free printhead and platen roller replacement system, plus automatic calibration and sensor alignment. Field replacement takes minutes, reducing service costs.
