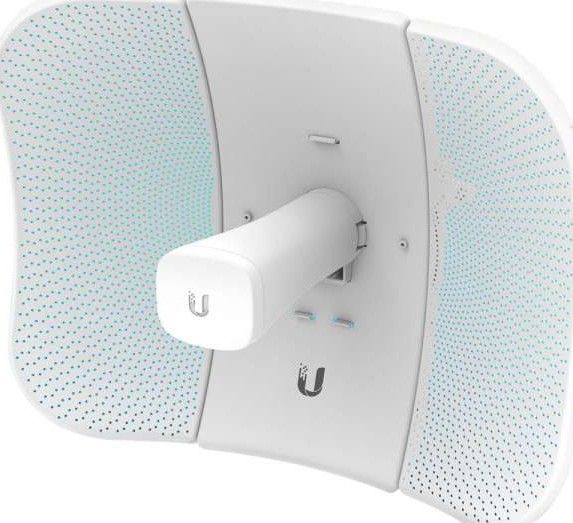

Ubiquiti LBE-5AC-Gen2 LiteBeam 5AC Gen2 Outdoor 5 GHz airMAX AC CPE Bridge with 23 dBi Integrated Antenna, Gigabit Ethernet and Passive PoE
Estimated delivery within UAE 1-2 working days
Delivery to other countries 3-5 working days
-
High‑gain 23 dBi directional CPE/bridge for outdoor 5 GHz links.
-
Delivers Gigabit‑Ethernet wired connectivity to match.
-
Passive PoE power input for simplified outdoor installation.
-
Low power draw (~7 W) helps in remote or powered environments.
-
Rugged design—rated for high wind loads and wide temperature range.
-
Integrated reflector and radio reduce cable losses and simplify setup.
-
Compact footprint (~358 × 272 × 273 mm) for easier mounting and alignment.
-
Ideal for long‑range wireless bridging across buildings or remote sites.
-
Model: LBE‑5AC‑Gen2
-
Frequency band: 5 GHz (approx. 5150–5875 MHz depending on region)
-
Antenna gain: 23 dBi (directional, integrated reflector design)
-
Ethernet interface: 1 × Gigabit (10/100/1000) RJ‑45 port
-
Power method: Passive PoE (pairs 4,5+; 7,8 return) with supplied 24 V/0.3 A PoE adapter
-
Maximum power consumption: ~7 W
-
Hardware: MIPS 74Kc processor, 64 MB DDR2 memory
-
Wind survivability: rated up to 200 km/h, wind loading ~275 N @ 200 km/h
-
Operating temperature range: ‑40 °C to +70 °C
-
Typical use: Outdoor point‑to‑point or point‑to‑multipoint link bridging; high‑gain, long‑range deployment
