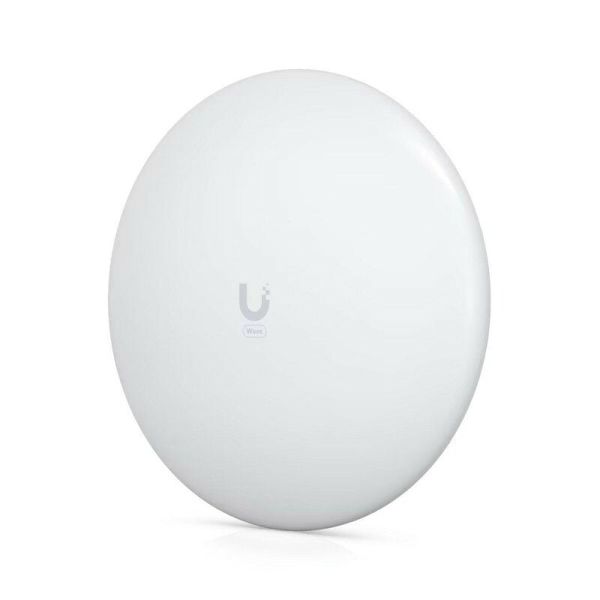

Ubiquiti Wave-LR 60 GHz Long-Range PtMP Station (Ø424.4 × 166.2 mm, 2 Gbps)
Estimated delivery within UAE 1-2 working days
Delivery to other countries 3-5 working days
Special Offers
Epson EcoTank L5590 All-in-One Printer A4 Multifunction with ADF, Fax, Wi-Fi, Borderless, Wireless, Low Cost Printing for Home & Office
Canon PIXMA G3470 Wireless 3-in-1 Colour MegaTank Printer – Fast Printing, Huge Savings, Refillable Ink, Black
Epson SureColor SC-T5405 Wireless Printer with Stand – 2400 x 1200 DPI, Ultrachrome XD2 Ink, 4pl Droplet Technology, 800 Nozzles, White
-
High-performance 60 GHz PtMP station engineered for long-range links
-
Ø424.4 × 166.2 mm compact form factor
-
Weight 2.59 kg (without mount), 3.79 kg (with mount)
-
Weatherproof (IPX6) with UV-stabilized plastic and steel mount
-
Delivers up to 2 Gbps total throughput
-
Range up to 8 km (with compatible Wave AP)
-
Includes 5 GHz backup radio for reliability
-
Powered via Passive PoE (48 V) with a single Gigabit Ethernet port
Specifications
-
Model: Wave-LR (Wave Long-Range)
-
Dimensions: Ø 424.4 mm × 166.2 mm (Ø16.7″ × 6.5″)
-
Weight:
• Without mount: 2.59 kg
• With mount: 3.79 kg -
Enclosure & Materials: UV-stabilized plastic enclosure, stainless steel mount
-
Operating Temperature: –40 °C to +60 °C
-
Weatherproofing / Ingress Protection: IPX6
-
Antenna / RF:
• Operating frequency: 57–71 GHz primary band
• Antenna gain: 46 dBi
• Backup radio: 5 GHz (for redundancy) -
Throughput & Range:
• Max total throughput: 2 Gbps (1 Gbps duplex)
• Link range: up to 8 km (with Wave AP) -
Power / Interface:
• One (1) Gigabit Ethernet RJ-45 port
• Power: Passive PoE (48 V DC, 0.65 A)
• Max power consumption: ~18–20 W -
Mounting: Pole mount diameter supported: 25 to 76.2 mm (1″ to 3″)
-
Certifications & Standards: FCC, IC, CE; NDAA compliant export variant
-
Software / Features: Bridge / Router mode (in PtMP), Wave AI, discovery protocol, antenna alignment, speed test, SNMP, UISP compatibility
