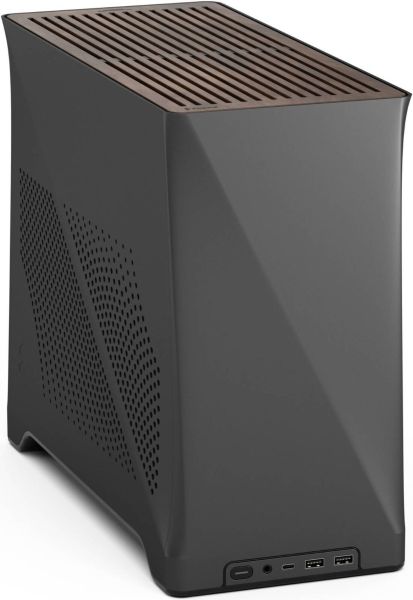

Fractal Design Era 2 Mini-ITX Charcoal Case Up to 280mm Radiator & 4x Fans Support, Bottom Dust Filters

Form Factor: Mini‑ITX

Material: Aluminum panels / Steel frame

Exterior Shell Dimensions: 165 × 366 × 314 mm

Net Weight (chassis): ~4.64 kg

Motherboard Support: Mini‑ITX

PSU Support: SFX / SFX‑L

Drive Bays: 4 × 2.5″ SSD mounts

Expansion Slots: 3 (full height)

Front I/O: 1 × USB‑C (3.2 Gen2×2), 2 × USB‑A 3.0, 1 × audio combo jack

Fan / Cooling Support:
  • Included: 2 × 120 mm Aspect PWM fans
  • Maximum mounts: 4 × 120 mm or 2 × 120 + 2 × 140 mm
  • Bottom: 2 × 120 mm
  • Top: 2 × 120 / 2 × 140 mm (depending on radiator)

Radiator Support: top up to 315 × 140 mm (thickness ≤ 52 mm) or 300 × 140 mm (thickness ≤ 58 mm)

GPU Support: length up to 326 mm, height up to 137 mm, thickness 48–63 mm

CPU Cooler Clearance: 55–70 mm (depending on motherboard offset)

Extra Features: captive thumbscrews, magnetic / sliding top panel, pre-installed PCIe riser (version-specific)

Dust Filter: bottom (PSU / intake)
