جهاز Tenda OS3 اللاسلكي الخارجي CPE - هوائي 5 جيجاهرتز 12 ديسيبل، مقاوم للماء IP65، رابط PtP بمدى 5 كم+، مزود بخاصية PoE السلبي

متوفر في المخزن

Warranty: عام واحد

SKU:

OS3

27٫47 د.ك.‏

Original 100% Visit Store →

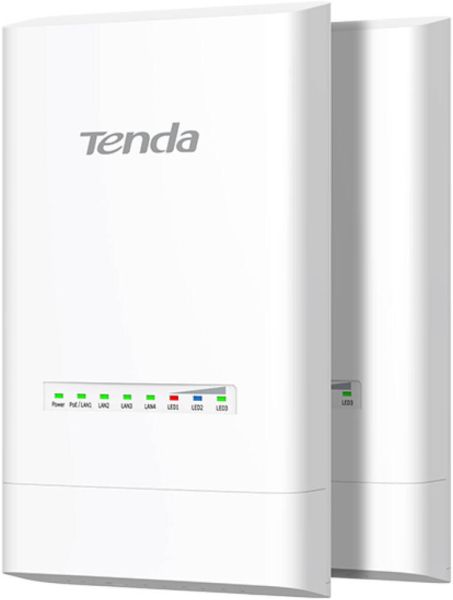

Tenda OS3 Outdoor Wireless CPE – 5GHz 12dBi Antenna, IP65 Waterproof, 5km+ PtP Link, Passive PoE

GTIN: 885397276197

Manufacturer: Tenda

Model: OS3

Colour: ابيض

Dimensions: Length: 20.9 cm Width: 11.6 cm Height: 10 cm

Weight: 1.000000

Warranty: عام واحد

Model: Tenda OS3
Type: Outdoor Wireless CPE (Customer Premises Equipment)
Frequency Band: 5GHz
Wireless Standard: IEEE 802.11a/n/ac
Maximum Wireless Rate: 867 Mbps
Antenna: 12dBi Directional Antenna
Antenna Beamwidth: Horizontal: 30°, Vertical: 30°, Elevation: 30°
Interfaces:
- 4 × 10/100 Mbps LAN Ports
Power Supply:
- 12V 1A Passive PoE
- 12V 1A DC
Power Consumption: 4.7W
Waterproof Rating: IP65
Lightning Protection: 6000V
Operating Temperature: -30°C to 60°C
Operating Humidity: 10% to 90% (non-condensing)
Mounting Options: Pole or Wall Mount
Deployment Scenarios: Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) wireless connections for private ISP access or CCTV surveillance
Operating Modes:
- Access Point (AP)
- Station
- WISP
- Repeater
- Router
LED Indicators: Power, PoE/LAN1, LAN2, LAN3, LAN4
Reset Button: 1
TDMA Protocol: TD-MAX
Reception Sensitivity:
- 11a 6Mbps: -90dBm ±1.5dBm
- 11n MCS0 HT20: -70dBm ±1.5dBm
- 11n MCS7 HT20: -70dBm ±1.5dBm
- 11ac MCS9 HT80: -59dBm ±1.5dBm
Channel Bandwidth: 20/40/80 MHz
Security Protocols: WPA-PSK, WPA2-PSK, WPA/WPA2
VLAN Tagging for SSID: Supported
DHCP Server: Supported
Firmware Upgrade: Backup/Restore Configuration, Username Management
Default Login IP: 192.168.2.1
