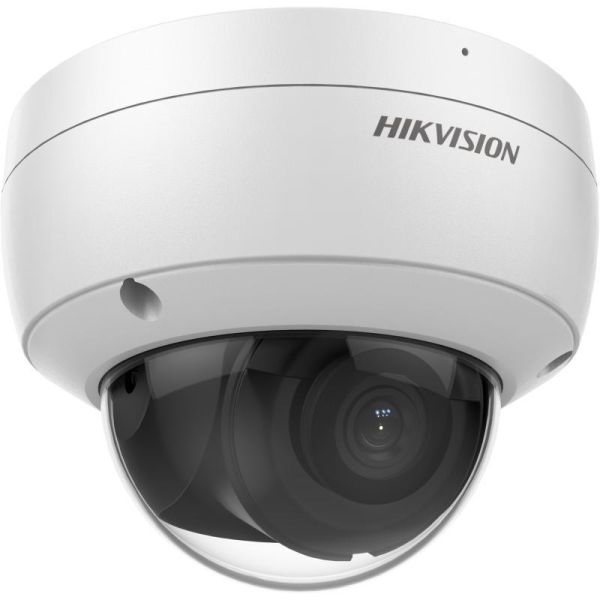

Hikvision DS-2CD2143G2-IU 4 MP AcuSense Built-in Mic Fixed Dome Network Camera

• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520 (2 MP)
• Minimum Illumination:
  • Color: 0.005 Lux @ (F1.6, AGC ON)
  • B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter

Lens:

• Focal Length & FOV:
  • 2.8 mm: Horizontal FOV 103°, Vertical FOV 55°, Diagonal FOV 122°
  • 4 mm: Horizontal FOV 84°, Vertical FOV 45°, Diagonal FOV 100°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI:

• 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m
• 4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m

Illuminator:

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video:

• Main Stream:
  • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream:
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video Compression:
  • Main stream: H.265/H.264/H.264+/H.265+
  • Sub-stream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264
• Video Bitrate: 32 Kbps to 8 Mbps
• Bitrate Control: CBR/VBR
• Scalable Video Coding (SVC): Yes
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio:

• Audio Compression: G.711ulaw, G.711alaw, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Audio Bit Rate:
  • G.711ulaw/G.711alaw: 64Kbps
  • G.722.1: 16Kbps
  • G.726: 16Kbps
  • AAC-LC: 16Kbps-64Kbps
  • MP2L2: 32-192Kbps
  • MP3: 8-320Kbps
• Audio Sampling Rate: 8 kHz, 16 kHz, 32 kHz, 44.1 kHz, 48 kHz
• Environment Noise Filtering: Yes

Network:

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP
• Security: Password protection, HTTPS encryption, IP address filter, TLS 1.1/1.2
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central

Image:

• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC, HLC, 3D DNR

Interfaces:

• Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board Storage: Built-in microSD, up to 512 GB
• Built-in Microphone: Yes

General:

• Power:
  • 12 VDC ± 25%, 0.4 A, max. 5 W
  • PoE: IEEE 802.3af, Class 3, max. 6.5 W
• Dimensions: Ø121.4 × 92.2 mm (Ø4.8″ × 3.7″)
• Weight: Approx. 570 g (1.3 lb.)
• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)

Protection:

• IP67 (IEC 60529-2013)
• IK10 (IEC 62262: 2002)

Approval:

• EMC: FCC, CE-EMC, RCM, IC, KC
• Safety: UL, CB, CE-LVD, BIS
• Environment: CE-RoHS, WEEE, Reach

Languages: 33 languages (including English, Russian, French, Spanish, etc.)
