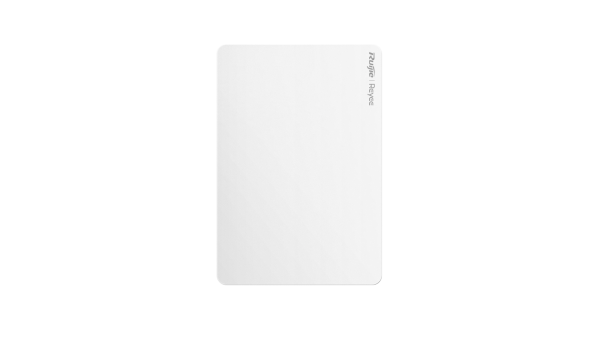

Ruijie Reyee RG‑RAP1260 AX3000 WiFi 6 Access Point Dual‑Band Wall Plate 4×GE, 3000 Mbps

In Stock

Warranty: 1 Year

SKU

RG‑RAP1260

KWD 48.31

Original 100% Visit Store →

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

More Information

High‑performance WiFi 6 (AX3000) dual‑band access point
3,000 Mbps combined throughput (2.4 + 5 GHz)
1 uplink (PoE) + 4 Gigabit downlink ports for wired devices
Supports up to 110 active clients (512 max)
8 SSIDs, band steering, load balancing, roaming support
Integrated 2×2 MU‑MIMO, 160 MHz channel width
Managed via Ruijie Cloud / Reyee Mesh capable

GTIN: 6971693274860

Manufacturer: Ruijie

Model: RG‑RAP1260

Colour: Black

Dimensions: 13 cm (Depth) x 9 cm (Width) x 3 cm (Height)

Weight: 0.600000

Warranty: 1 Year

Ruijie Reyee RG‑RAP1260 – Technical Specifications

Wireless / Radio / Throughput

Dual‑radio concurrent 802.11ax (WiFi 6) on 2.4 GHz and 5 GHz
Maximum throughput: up to 3,000 Mbps (combined)
2×2 MU‑MIMO on both bands
160 MHz channel support (on 5 GHz)
Max transmit power: ~20 dBm (2.4 GHz), ~30 dBm (5 GHz)
Integrated omnidirectional antennas: ~3 dBi (2.4 GHz), ~5 dBi (5 GHz)

Interfaces / Ports / Power

1 × Gigabit uplink port (PoE in, IEEE 802.3af/at)
4 × Gigabit downlink ports (for wired devices)
Power consumption: up to ~12 W

Capacity & Features

Supports up to 512 clients (software limit)
Recommended active clients: ~110
Up to 8 SSIDs, hidden SSID, band steering, load balancing, roaming (802.11k/v)
Security: WPA‑PSK, WPA2‑PSK, mixed WPA / WPA2 modes
Cloud / remote management via Ruijie Cloud; supports Reyee Mesh / SON mode

Physical & Environmental

Operating temperature range: 0 °C to 40 °C
Protection / ingress rating: IP41
