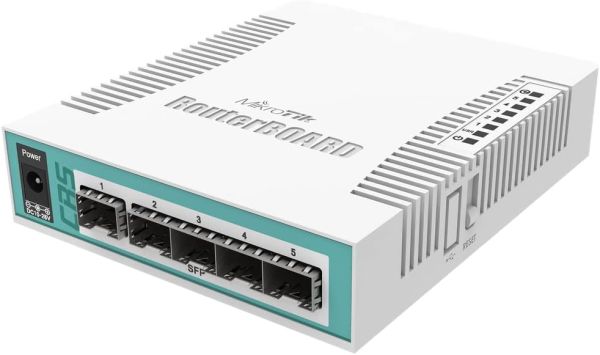

MikroTik CRS106-1C-5S Cloud Router Switch 5×1.25 Gb SFP + 1× Gigabit/SFP Combo, RouterOS L5, 11‑30 V DC
-
Compact smart switch with 5 high‑speed SFP ports plus one flexible Gigabit/SFP combo port.
-
Runs on a 400 MHz CPU with 128 MB RAM and 16 MB flash storage for reliable performance.
-
Pre‑installed RouterOS with Level 5 license for advanced switching and management features.
-
Powerable via 11‑30 V DC or passive PoE‑IN for flexible deployment.
-
Maximum power draw of approximately 11 W, making it energy efficient and fanless.
-
Dimensions of 114 × 137 × 29 mm; desktop form‑factor for easy integration.
-
Operating temperature range –20 °C to +70 °C ensures suitability in varied environments.
-
Ideal for fiber‑rich setups, small POPs or aggregation links where multiple SFP uplinks are needed.
-
Architecture: MIPSBE
-
CPU: QCA8511, 1 core
-
CPU nominal frequency: 400 MHz
-
Size of RAM: 128 MB
-
Storage size: 16 MB (Flash)
-
Switch chip model: QCA8511
-
License level: RouterOS Level 5
-
Operating System: RouterOS
-
Ports: 5 × 1.25 Gbps SFP cages
-
Additional port: 1 × combo port (Gigabit RJ‑45 or SFP)
-
Number of DC inputs: 2 (DC jack + PoE‑IN)
-
DC jack input voltage: 11‑30 V
-
PoE‑IN type: Passive PoE
-
PoE‑IN input voltage: 11‑30 V
-
Max power consumption: ~11 W
-
Cooling type: Passive (fanless)
-
Dimensions: 114 × 137 × 29 mm
-
MTBF: Approximately 100,000 hours at 25 °C
-
Tested ambient temperature: –20 °C to +70 °C
-
Certifications: CE, EAC, RoHS
-
Ingress protection rating: IP20
-
Serial console port: RJ‑45
