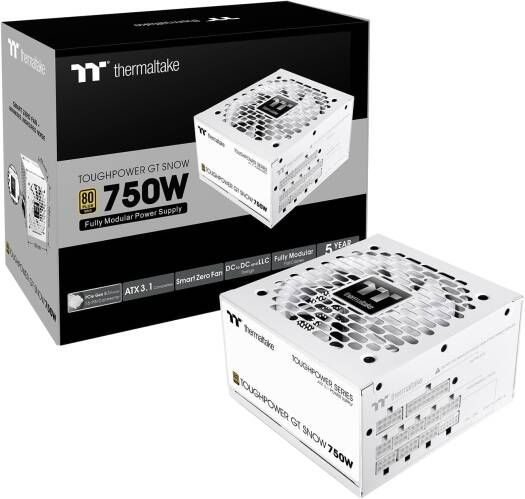

Toughpower GT Series
The fully modular Toughpower GT series is designed to deliver 80 PLUS Gold efficiency and is compatible with ATX 3.1 standards. Its native PCIe 12V-2x6 (12+4 pin) modular interface efficiently powers PCIe 12+4 pin graphics cards. Backed by an extensive 5-year warranty, the Toughpower GT series meets the needs of value-oriented users seeking a new power supply with reliable performance.
ATX 3.1 Ready
Toughpower GT series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% efficiency at low load and complies with required power supply timing standards.
ATX 3.1ATX 2.0Total power excursion
2X
1.3X
2X
Total Power Excursion
3X
GPU Power Excursion
PCIe Gen 5.1 Ready
Toughpower GT series comes with a PCIe 12V-2x6 connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
The wattage marked on the PCIe 12+4-pin cable connector represents the recommended wattage (Ref. Intel design guideline).
Note:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufactures before using the PCIe 12+4pin cable.
12+4pin Connector
Ultra Quiet 120mm Hydraulic Bearing Fan with Smart Zero Fan
Featuring an 120mm Hydraulic Bearing Fan to keep friction at really low level. Designed with our Smart Zero Fan to adjust the fan speed and minimizes undesired noise.
High Amperage Single +12V Rail & High-Class Technologies
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.
AC INPUT
Input Voltage: 100 - 240V~
Input Current: 10A Max.
Frequency: 50Hz-60Hz
DC OUTPUT
+3.3V
+5V
+12V
-12V
+5VSB
Max Output Current
20A
20A
62.5A
0.3A
3A
Max Output Power
100W
750W
3.6W
15W
Total Power
750W
Fully Modular Low-Profile Cables
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile cables make cable management easier, reduces clutter and increases airflow inside the chassis.
Connector Type Connector Quantity Cable Quantity Cable Length
Main Power
(24Pin) X 1 X 1 550mm
ATX 12V
(4+4Pin) X 2 X 2 700mm
PCIe
(6+2Pin) X 4 X 2 600mm+150mm
PCIe
(12+4Pin) X 1 X 1 600mm
SATA
(5Pin) X 6 X 2 450mm+150mm+150mm
Peripheral(4Pin) X 4 X 1 400mm+150mm +150mm+150mm
Built-in Industrial Grade Protection
To protect the hardware, Toughpower GT series is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
OCP
Over Current Protection
OVP
Over Voltage Protection
UVP
Under Voltage Protection
OPP
Over Power Protection
SCP
Short Circuit Protection
OTP
Over Temperature Protection
80 PLUS Gold Certified
Toughpower GT series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold.
| GTIN | 841163087350 |
|---|---|
| الوزن | 1.500000 |
| اللون | Snow White |
| الماركة | Thermaltake |
| Dimensions | 150mm(W)x86mm(H)x140mm(D) |
| Main Input Voltage | 100-240V～ |
| Max Output (Watts) | 750W |
| MTBF | 100,000 hrs minimum |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
| Protection | OVP/UVP/OCP/OPP/OTP/SCP |
| PFC | Active PFC |
| Storage Temperature | -40°C to + 70°C |
| Operating Temperature | 0°C to + 40°C |
| Cooling System | 12cm Hydraulic bearing fan |
| Operating Humidity | 5% to 85%,non-condensing |
| Safety Approval | CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK |
