Display: 86-inch 4K UHD (3840×2160), 400 nits brightness, 5000:1 contrast ratio, 10-bit color, 60Hz refresh rate
-
Touch: Infrared touch, supports 40 touch points, ±1mm accuracy, ≤10ms response, 4mm anti-glare tempered glass
-
RAM/Storage: 8GB RAM, 128GB internal storage
-
Processor & OS: 8-core ARM Cortex-A55 CPU, Android 14.0
-
Camera: 48MP AI camera (8MP photo/video on Android, 12MP video on Windows), auto framing & speaker tracking
-
Audio: 2×20W speakers + 20W subwoofer
-
Wi-Fi/Bluetooth: Built-in Wi-Fi (2.4GHz/5GHz), Bluetooth 5.0
-
Interfaces:
-
Front: 3×USB3.0, 1×Type-C, 1×Touch USB, 1×HDMI IN
-
Rear: HDMI, USB, DP, VGA, LAN, RS232, MIC IN, TF card, Audio I/O, Coax, TOUCH OUT
-
-
Compatibility: Supports Windows, Android, Linux, Mac OS
-
Build: Durable 9H hardness, 50,000h lifespan, viewing angle 178°
-
Dimensions: 1953.56×1177.9×88.3 mm (Product), 2095×1320×220 mm (Package)
-
Power: ≤210W typical, ≤0.5W standby, 100–240V AC
-
Weight: 50 kg (Net), 62 kg (Gross)
-
Accessories: 2×Touch Pen, Wall Mount, Power Cord, Remote Control, Quick Guide

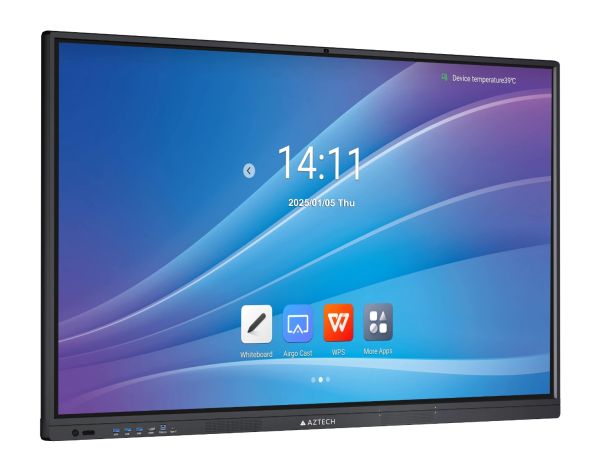

AZtech AZ2586-M01 86 inch 4K Smart Interactive Display, IFP, 8GB RAM + 128GB Storage, 400 NITS Brightness, 48MP Inbuilt AI camera, 40 Points Touch, Inbuilt WIFI 6, 20W x 2 + 20W x 1 Subwoofer, Android 14, Screen share & Google Playstore
Display
-
Screen size: 86 inches
-
Backlight: DLED
-
Resolution: 3840×2160
-
Brightness (cd/m²): 400
-
Contrast Ratio: 5000:1
-
Refresh Rate: 60Hz
-
Response Time (ms): 8
-
Aspect Ratio: 16:9
-
Color: 10 Bit
-
Viewing Angle: Horizontal 178°, Vertical 178°
-
Surface Hardness: 9H (7 on the Mohs scale)
-
Lifespan: 50000H
-
View Area (W*H): 1895(H) × 1066(V)
Android System
-
RAM: 8G
-
ROM: 128G
-
CPU: 8 Core ARM Cortex-A55
-
OS: Android 14.0
Touch
-
Sensing Type: Infrared Touch Frame, support 40 touch points
-
Glass: 4mm tempered glass, Anti-glare
-
Touch Accuracy (mm): ±1
-
Response Time (ms): ≤10
-
Recognizable object (mm): 2
-
Touchscreen input: Opaque objects (e.g. finger, pen, etc.)
-
Support System: Windows10 / Windows8 / Windows7 / Windows XP / Android / Linux / Mac OS X
WiFi & Bluetooth
-
Wifi: 2.4GHz / 5GHz
-
Working Distance (m): 0~12
-
Bluetooth: 5.0
Camera, Microphone & Speaker
-
Pixel:
48MP, Android: Pixel 8MP for Photos & 8MP for Video,
Windows: Pixel 48MP for Photos & 12MP for Video -
Microphone array: 8
-
Pickup distance: 8
-
Smart function: Auto Framing & Speaker Tracking
-
Speaker: 2*20W+20W
Interface
-
Front interface:
3* USB3.0, 1* Type C, 1* Touch USB, 1* HDMI in -
Rear Interface:
1* RJ45 IN, 2HDMI IN, 1 RS232, 1USB 3.0, 1VGA IN, 1Audio IN, 1DP IN, 1MIC IN,
1TF–Card, 1USB 2.0, 1Earphone, 1HDMI OUT, 1LAN OUT, 1Coax, 1TOUCH out
General
-
System Language: English, Multi Language Support
-
Power Supply: 100–240V, 50/60Hz
-
Overall power consumption (W): ≤210 (without OPS)
-
Consumption(W): ≤0.5 (Standby)
-
Dimensions (W x H x D) (mm):
Package Size – 2095 x 1320 x 220,
Product Size – 1953.56 x 1177.9 x 88.3 -
Operating Temperature: 0°C ~ 40°C
-
Weight (Kg): Net weight: 50 KG, Gross weight: 62 KG
-
Operating Humidity: 10%~80% (No Condensation)
-
Storage Temperature: -20°C to 60°C
-
Storage Humidity: 10% to 90% (noncondensing)
-
Accessories Included:
2Touch Pen, 1Wall Mount, 1power cord, 1quick guide, 1*Remote control
