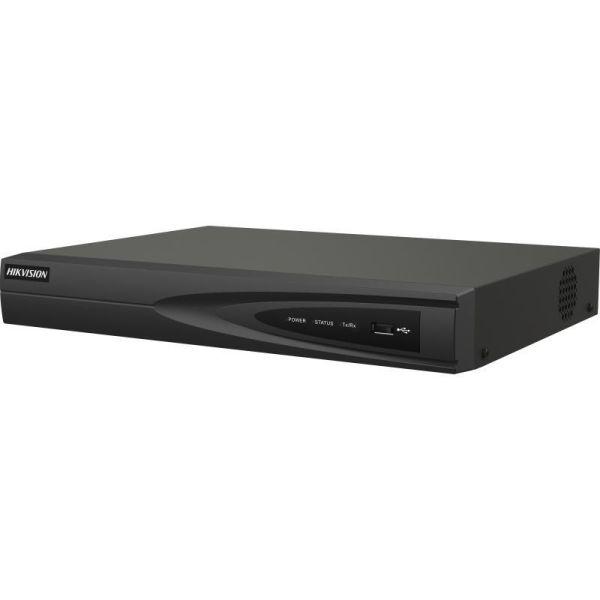

Hikvision DS-7608NI-Q1 8-ch 1U 4K NVR Up to 8-ch IP camera inputs

Motion Detection & Analysis

• Motion Detection 2.0
• Human/Vehicle Analysis

Video & Audio

• Video Input Channels: 4-ch

• Audio Input Channels: 4-ch

• Video Output:

  • HDMI Output: 1-ch
    • Resolutions:
      • 4K (4096 x 2160) / 30 Hz, 4K (3840 x 2160) / 30 Hz
      • 2K (2560 x 1440) / 60 Hz
      • 1920 x 1080 / 60 Hz
      • 1600 x 1200 / 60 Hz
      • 1280 x 1024 / 60 Hz
      • 1280 x 720 / 60 Hz
  • VGA Output: 1-ch
    • Resolutions:
      • 1920 x 1080 / 60 Hz
      • 1280 x 1024 / 60 Hz
      • 1280 x 720 / 60 Hz
  • Video Output Mode: HDMI/VGA simultaneous output

• Audio Output:

  • 1-ch, RCA (Linear, 1 KΩ)

• Two-Way Audio:

  • 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Recording

• Stream Type: Video, Video & Audio
• Audio Compression: G.711ulaw / G.711alaw / G.722 / G.726
• Decoding Format: H.265+, H.265, H.264+, H.264
• Recording Resolution:
  • 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
• Decoding Capability:
  • 1-ch @ 8 MP (30 fps)
  • 3-ch @ 4 MP (30 fps)
  • 6-ch @ 1080p (30 fps)

Note: The length or width of camera resolution (each track) cannot exceed 4096 pixels.

• Synchronous Playback: 8-ch

Network

• Remote Connection: 32
• Network Protocols:
  • TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface:
  • 1 x RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Auxiliary Interface:
  • Alarm In/Out: N/A (4/1 is optional)

Storage

• SATA: 1
• Storage Capacity:
  • Up to 8 TB capacity per disk

USB Interface

• Front Panel: 1 × USB 2.0
• Rear Panel: 1 × USB 2.0

General Specifications

• Power Supply: 12 VDC, 1.5 A
• Power Consumption: ≤ 10 W (without HDD)
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Dimensions (W × D × H): 320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
• Weight: ≤ 1 kg (2.2 lb. without HDD)

Certifications

• FCC: Part 15 Subpart B, ANSI C63.4-2014
• CE:
  • EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
  • EN 55035: 2017
