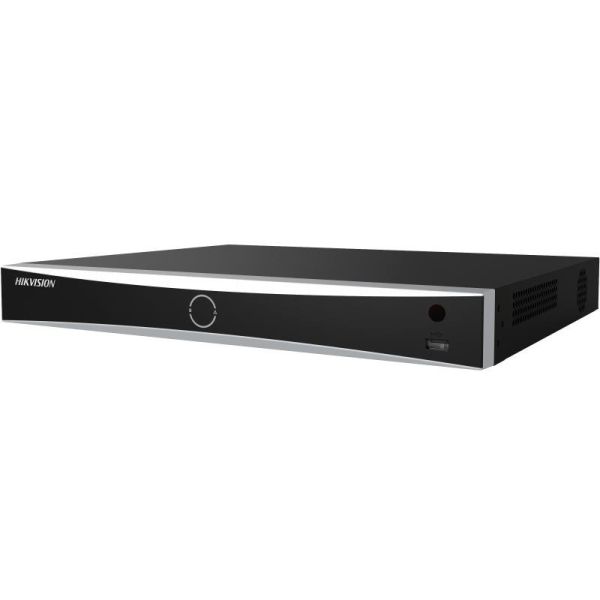

Hikvision DS-7632NXI-K2/16P 32-ch PoE 1U K Series AcuSense 4K NVR with POE, Up to 32-ch, plug & play with 16 Power-over-Ethernet (PoE) interfaces | DS-7632NXI-K2/16P

Specifications

Intelligent Analytics

• AI by Device: Facial recognition, perimeter protection, motion detection 2.0

• AI by Camera: Facial recognition, perimeter protection, throwing objects from building, motion detection 2.0, ANPR, VCA

• Facial Recognition:

  • Face picture comparison

  • Human face capture

  • Face picture search

• Face Picture Library:

  • Up to 16 face picture libraries

  • Up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)

Facial Detection and Analytics Performance

• 1-ch, 8 MP

Face Picture Comparison

• 4-ch

Motion Detection 2.0

• By Device: All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP); video analysis for human and vehicle recognition to reduce false alarms

• By Camera: All channels

Perimeter Protection

• By Device: 2-ch, 4 MP (HD network camera, H.264/H.265); video analysis for human and vehicle recognition to reduce false alarms

• By Camera: All channels

Video and Audio

• IP Video Input: 32-ch

• Incoming Bandwidth: 256 Mbps

• Outgoing Bandwidth: 160 Mbps

• HDMI Output:

  • 1-ch, 4K (3840 × 2160)/30 Hz

  • 2K (2560 × 1440)/60 Hz

  • 1920 × 1080/60 Hz

  • 1600 × 1200/60 Hz

  • 1280 × 1024/60 Hz

  • 1280 × 720/60 Hz

  • 1024 × 768/60 Hz

• VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

• Video Output Mode: HDMI/VGA independent output

• CVBS Output: N/A

• Audio Output: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

• Two-Way Audio: 1-ch, RCA (Linear, 1 KΩ)

Decoding

• Decoding Format: H.265/H.265+/H.264+/H.264

• Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

• Synchronous Playback: 16-ch

• Decoding Capability:

  • AI On: 1-ch@12 MP (30 fps) / 2-ch@8 MP (30 fps) / 4-ch@4 MP (30 fps) / 8-ch@1080p (30 fps)

  • AI Off: 2-ch@12 MP (30 fps) / 3-ch@8 MP (30 fps) / 6-ch@4 MP (30 fps) / 12-ch@1080p (30 fps)

• Stream Type: Video, Video & Audio

• Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC

Network

• Remote Connection: 128

• API: ONVIF (profile S/G); SDK; ISAPI

• Compatible Browser: IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above

• Network Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS

• Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• Interface: 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface

• Power: ≤ 200 W

• Standard: IEEE 802.3af/at

Auxiliary Interface

• SATA: 2 SATA interfaces

• Capacity: Up to 10 TB capacity for each HDD

• USB Interface:

  • Front panel: 1 × USB 2.0

  • Rear panel: 1 × USB 2.0

• Alarm In/Out: 4/1

General

• GUI Language:
  English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian

• Power Supply: 100 to 240 VAC, 50 to 60 Hz

• Power Consumption: ≤ 15 W (without HDD and PoE off)

• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)

• Working Humidity: 10% to 90%

• Dimensions (W × D × H): 385 mm × 315 mm × 52 mm (15.2"× 12.4" × 2.0")

• Weight: ≤ 3 kg (without HDD, 6.6 lb.)

Certification

• FCC Part 15 Subpart B, ANSI C63.4-2014
