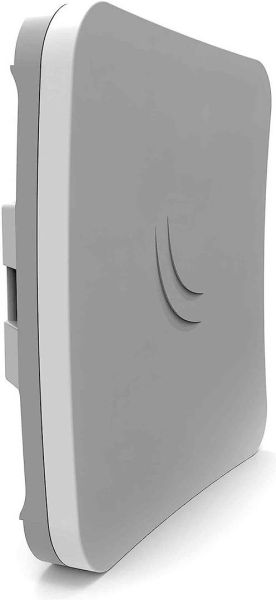

MikroTik RBSXTsqG‑5acD SXTsq 5 ac 16 dBi 5 GHz Outdoor CPE / Point‑to‑Point Wireless Device


-
5 GHz outdoor CPE device with integrated 16 dBi antenna
-
Dual-chain Wi-Fi supporting 802.11a / n / ac, data rate up to 867 Mbps
-
Passive PoE input (10‑28 V), maximum consumption ~7 W
-
1 × Gigabit Ethernet port (10/100/1000)
-
Rugged IP55 weatherproof enclosure for outdoor use
-
Operating range: –40 °C to +70 °C
-
RouterOS level 3 with performance up to ~1 Gbps in ideal routing / bridging
Processor / Firmware
-
ARM 32‑bit, IPQ‑4018 quad‑core (~716 MHz)
-
RouterOS, license level 3
Memory / Storage
-
256 MB RAM
-
16 MB Flash
Wireless / Radio
-
5 GHz band only (no 2.4 GHz)
-
2 × 2 MIMO, supports 802.11a / n / ac
-
Max data rate: 867 Mbps
-
Integrated directional antenna, gain 16 dBi
-
Beam width ~ 23°
Ethernet / Interfaces
-
1 × Gigabit Ethernet (10/100/1000)
Power / Consumption
-
Passive PoE input, 10 to 28 V
-
Maximum power draw ~7 W
-
Passive (fanless) cooling
Environmental & Certifications
-
Operating temperature: –40 °C to +70 °C
-
Protection / Ingress rating: IP55
-
Certifications: CE, FCC, IC, EAC, RoHS
Performance
-
Ideal throughput (bridging / routing) ~ up to ~1 Gbps in optimal conditions
