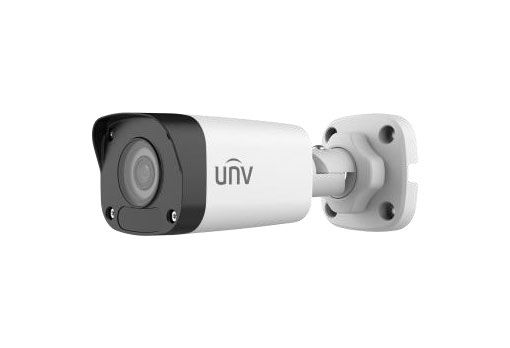

UNV IPC2125LB-SF28(40)-A 5MP Fixed IR Mini Bullet Network Camera

Camera:
Resolution: 5MP
Sensor: 1/3.0"CMOS
Min. Illumination: Colour: 0.01 lux (F2.1, AGC ON)
0 lux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment angle: Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
S/N: >52dB
WDR: DWDR

Lens:
Lens type: IPC2125LB-SF28-A:2.8mm
IPC2125LB-SF40-A:4.0mm
Iris Type: Fixed
Iris: F2.1
Field of View (H): IPC2125LB-SF28-A:97.0°
IPC2125LB-SF40-A:79.0°
Field of View (V): IPC2125LB-SF28-A:52.2°
IPC2125LB-SF40-A:42.3°
Field of View (D): IPC2125LB-SF28-A:107.5°
IPC2125LB-SF40-A:85.1°

DORI:
DORI Distance（Lens）: IPC2125LB-SF28-A:2.8mm
IPC2125LB-SF40-A:4.0mm
DORI Distance（Detect）: IPC2125LB-SF28-A:63.0m(206.7ft)
IPC2125LB-SF40-A:90.0m(295.3ft)
DORI Distance（Observe）: IPC2125LB-SF28-A:25.2m(82.7ft)
IPC2125LB-SF40-A:36.0m(118.1ft)
DORI Distance（Recognize）: IPC2125LB-SF28-A:12.6m(41.3ft)
IPC2125LB-SF40-A:18.0m(59.1ft)
DORI Distance（Identify）: IPC2125LB-SF28-A:6.3m(20.7ft)
IPC2125LB-SF40-A:9.0m(29.5ft)

Illuminator:
IR Range: Up to 30m (98ft)
Wavelength: 850nm
IR On/Off Control: Auto/Manual

Video:
Video Compression: Ultra 265; H.265; H.264; MJPEG
H.264 code profile: Baseline profile, Main profile, High profile
Frame Rate: Main Stream: 5MP (25921944), Max 20fps; 4MP (25601440), Max 20fps; 3MP (23041296), Max 20fps; 2MP (19201080), Max 30fps
Sub Stream: D1 (720576), Max 30fps; 640360, Max 30fps; 2CIF (704288), Max 30fps; CIF (352288), Max 30fps
Video Bit Rate: 128 Kbps ~ 6144 Kbps
U-code: Support
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Video stream: Dual streams

Image:
White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal/Vertical/Horizontal/180°
Dewarping: N/A
HLC: Support
BLC: Support
Defog: Digital Defog

Events:
Basic Detection: Motion detection
General Function: Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP authentication

Network:
Protocols: IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; UPnP; HTTP; HTTPS; 802.1x; QoS; SSL/TLS; SMTP
Compatible Integration: ONVIF (Profile S, Profile T); API; SDK
User/Host: Up to 32 users, 2 user levels: administrator and common user
Security: Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; WSSE and digest authentication for ONVIF
Client: EZStation; EZView; EZLive
Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface:
Audio I/O: N/A
Alarm I/O: N/A
Serial Port: N/A
Built-in Mic: N/A
Built-in Speaker: N/A
WIFI: N/A
Network: 1 * RJ45 10M/100M Base-TX Ethernet
Video Output: N/A

Certification:
EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
FCC: FCC 47 CFR part15 B
Safety: CE LVD (EN 62368-1)
CB: IEC 62368-1
UL/CUL: UL 62368-1, CAN/CSA C22.2 No. 62368-1
Environment: CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU);
Protection: IP67 (IEC 60529)

General:
Power: DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.0W
Power Interface: Ø 5.5mm coaxial power plug
Dimensions (L x W x H): 161 × 63 × 62mm (6.4” × 2.5” × 2.4”)
Weight: 0.36kg (0.79lb)
Material: Graphene + Plastic
Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge protection: 4KV
Reset button: N/A
Web Client Language: 1 Language
English
