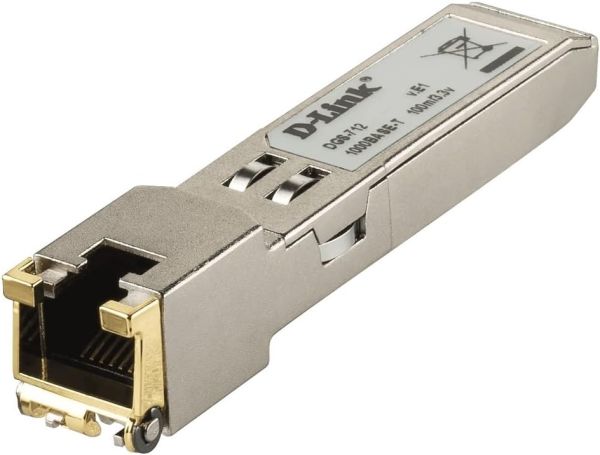

D‑Link DGS-712 1000Base‑T RJ45 Copper SFP Transceiver Module – Gigabit 10/100/1000 Mbps, 100m over Cat5/Cat5e Cable
التوصيل داخل الإمارات 1-2 يوم عمل
التوصيل خارج الإمارات 3-5 يوم عمل
عروض خاصة
طابعة صور إيpson EcoTank L8100 3 في 1 A4، 22 صفحة/دقيقة بالأبيض والأسود، نظام خزان الحبر، دقة 1200 × 4800 DPI، تطبيق Epson Smart Panel، C11CK94402
طابعة ايبسون ايكو تانك L3250 الكل في واحد، طابعة بخزان حبر، طباعة، نسخ، مسح ضوئي، واي فاي
-
Gigabit copper SFP transceiver module (10/100/1000 Mbps) for RJ‑45 copper links.
-
Supports transmission up to 100 metres over Cat5/Cat5e twisted‑pair cable.
-
Hot‑pluggable SFP form‑factor for flexibility in network equipment.
-
Auto MDI/MDIX enabled — no crossover cable required.
-
Compact metal housing (approx 11 × 75 × 11 mm) for durability and low EMI.
-
Low power consumption (~1.2‑1.3 W) and input voltage ~3.3 V.
-
Wide operating temperature range (0 °C to 85 °C) suitable for demanding environments.
-
Standards compliance: IEEE 802.3ab (1000BASE‑T Gigabit Ethernet), plus backward‑compatible with IEEE 802.3u (100BASE‑TX) and 10BASE‑T (conditional).
-
Form factor: SFP (Small Form‑Factor Pluggable) module.
-
Connector type: RJ‑45 copper interface for twisted‑pair cabling.
-
Auto MDI/MDIX support: Automatic crossover detection – no external crossover cable required.
-
Data rate: Up to 1 000 Mbps (1 Gbps) over appropriate interface (10/100/1000BASE‑T depending on host system capabilities).
-
Cable type supported: Category 5 (Cat5) or higher (Cat5e/Cat6) twisted‑pair copper cable.
-
Maximum cable distance: Up to 100 metres over Cat5/5e/6 cable.
-
Supply / power input: Typical input voltage ~3.3 V DC; input range approx. 3.1 V minimum to 3.5 V maximum.
-
Power consumption / supply current: Typical ~350 mA; maximum ~400 mA; maximum power ~1.3 W (over full operating voltage/temp range).
-
Operating temperature: 0 °C to 85 °C.
-
Storage temperature: –40 °C to 85 °C.
-
Enclosure: Fully metallic housing for durability and low EMI.
-
Hot‑pluggable: Supports plug/unplug from SFP slot without powering down host device.
-
Applications: Converts a standard SFP slot to Gigabit copper RJ‑45 port, ideal for data‑centres, enterprise wiring closets, service‑provider transport using copper up to 100 m.
