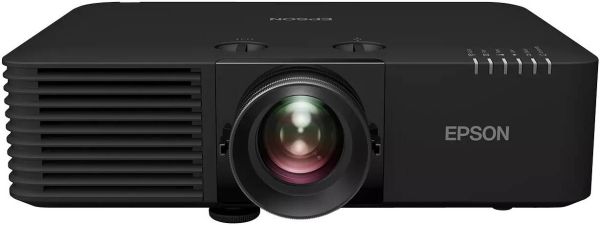

Epson EB-L775U WUXGA fixed lens 3LCD laser projector, 7,000 lumens, 4K Enhancement

Key Features

• 7,000-lumen brightness

• Sharp images and vivid colours, even in well-lit rooms

• 4KE resolution

• Sharp 4KE images for excellent clarity

• BYOD connectivity with optional wireless or wired and HDBaseT

• Effortless, flexible installation

• Lightweight and compact design with wide lens shift

• Large image

• Scalable display size of up to 500 inches

Product Specifications

Technology

• Projection System: 3LCD Technology

• LCD Panel: 0.67 inch with C2 Fine


• Color Light Output: 7,000 Lumen - 4,900 Lumen (economy) In accordance with IDMS15.4

• White Light Output: 7,000 Lumen In accordance with ISO 21118:2020

• Resolution: WUXGA

• Contrast Ratio: Over 5,000,000 : 1

• Keystone Correction: Manual vertical: ±30 °, Manual horizontal ±30 °

• Colour Reproduction: Up to 1.07 billion colours

Optical

• Throw Ratio: 1.35 - 2.20:1

• Zoom: Manual, Factor: 1 - 1.6

• Screen Size: 50 inches - 500 inches

• Projection Lens F Number: 1.5 - 1.7

• Projection Lens Focal Length: 20 mm - 31.8 mm

• Projection Lens Focus: Manual

Connectivity

• Interfaces: USB 2.0-A, USB 2.0 Type B (Service Only), RS-232C, HDMI in (2x), HDMI out, HDBaseT, Jack plug out, Ethernet interface (100 Base-TX / 10 Base-T)

• Epson iProjection App: Ad-Hoc / Infrastructure

Advanced Features

• Security: Kensington lock, Password lock, Security cable hole, Wireless LAN unit lock, Password protection

• Other Features: 21:9 aspect ratio support, 4K enhancement, A/V mute, Arc Correction, Auto source search, Built-in speaker, CEC compatible, Direct Power on/off, Document Camera Compatible, Edge Blending, PC Free, Super resolution, Ultra-wide display (16:6), iProjection App

• Video Color Modes: Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709

General

• Power Consumption: 300 Watt (Normal On-Mode), 209 Watt (Eco On-Mode), 366 Watt (Normal Peak-mode), 277 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby)

• Product Dimensions: 440 x 304 x 122 mm (Width x Depth x Height)

• Product Weight: 8.5 kg

Other

• Warranty: 36 months Carry in

• Optional warranty extension available

Logistics Information

• SKU: V11HA96180

• EAN Code: 8715946712963

• Country of Origin: Philippines

• Layer: 2 Units

• Model: EB-L775U

What's in the Box

• Cable cover

• Main unit

• Remote control incl. batteries

• User guide

• Warranty document

• HDMI Cable

• Power cable

Optional Accessories

• Air Filter - ELPAF56 - L600/EB-14XX Series – V13H134A56

• Ceiling Mount (White) - ELPMB22 – V12H003B22

• Ceiling Mount (Low profile) - ELPMB30 – V12H526040

• Ceiling Pipe (450mm) - ELPFP13 – V12H003P13

• Ceiling Pipe (700mm) - ELPFP14 – V12H003P14

• Wireless LAN Adapter - ELPAP11 (2.4GHz & 5GHz) – V12H005A01

• Camera Unit - ELPEC01 – V12HA46010

• Screen (80" Mobile X type 16:9) - ELPSC21 – V12H002S21

• Screen (80" Pantograph 16:10) - ELPSC24 – V12H002S24

• Wireless Presentation Systems: Epson ELPWP20 - Wireless Presentation System – V12HA42040
