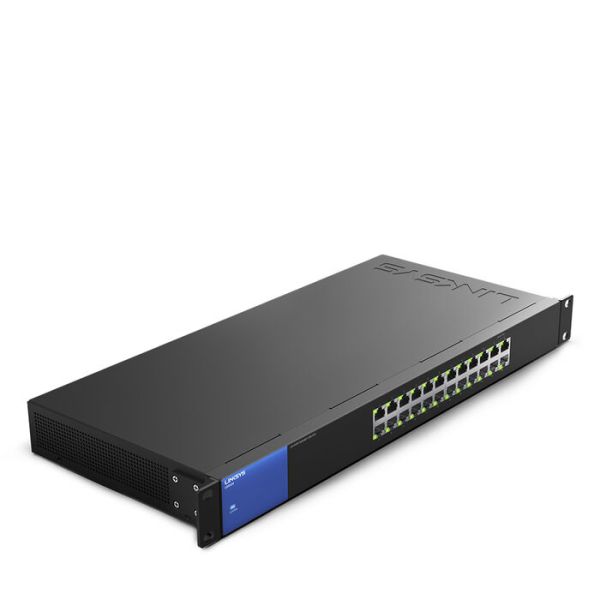

محول شبكة من لينكسيس للأعمال - 24 منفذ جيجابت LGS124

Switch Type

Unmanaged



Switch Ports

24



Power Consumption

3.62W/11.89W



LEDs

Link, speed, and activity indicators



Dimensions (LxWxH)

440 x 201 x 44mm



Weight

2.290 kg



Minimum System Requirements

Connected devices need Ethernet connectivity and Ethernet cables



Operating Humidity

10–90% (non-condensing)



Operating Temperature

0–50°C



Ports

24 Gigabit Ethernet (10/100/1000) Ports



Mounting

Rack



Quality Of Service

802.1p and DSCP



Storage Temperature

-40–70°C





MAC Address Table Size

8,000 entries



Performance

0.01488Mpps for 10M port

0.1488Mpps for 100M port

1.488Mpps for 1000M port

Full line rate and forwarding rate of 64B frame at:



Power

110–240 VAC, 50/60 Hz



Regulatory Compliance

FCC Class A, CE



Fans

None



Power Consumption

4.39 W / 14.16 W



Storage Humidity

10–90% (non-condensing)



Power Saving

Cable connected detection, sleep mode



Network Standards

IEEE 802.3

IEEE 802.3ab

IEEE 802.3az

IEEE 802.3u

IEEE 802.3x



Bandwidth

48 Gbps (non-blocking)
