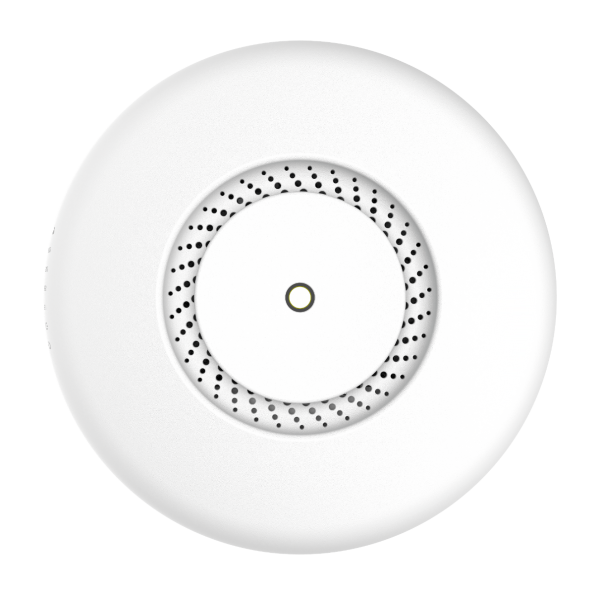

MikroTik RBcAPGi-5acD2nD Dual‑Band WiFi Access Point 2.4/5GHz, 2×Gigabit Ports, PoE‑IN/OUT, Ceiling/Wall Mount
-
Dual‑band (2.4GHz and 5GHz) WiFi access point with up to ~300/867 Mbps speeds.
-
Equipped with two Gigabit Ethernet ports—one supports PoE‑out to power another device.
-
High‑performance 4‑core IPQ‑4018 CPU, 128 MB RAM and 16 MB flash, running RouterOS Level 4.
-
Flexible power options: supports 802.3af/at PoE‑IN and passive PoE‑OUT for chaining devices.
-
Compact ceiling/wall mount design (145 mm × 145 mm × 30 mm) suitable for indoor deployments.
-
Wide operating temperature range (‑40 °C to +50 °C) for reliable use in many environments.
-
Built‑in IPsec hardware acceleration—ideal for secure enterprise or distributed wireless setups.
-
Two form‑factor options (round or square) to match interior aesthetic while delivering robust networking.
-
Architecture: ARM 32‑bit
-
CPU: IPQ‑4018, 4 cores, ~716 MHz
-
RAM: 128 MB
-
Storage: 16 MB Flash
-
RouterOS License Level: 4
-
Wireless bands:
-
2.4 GHz: 2 chains, 802.11b/g/n, max ~300 Mbps, antenna gain ~2 dBi
-
5 GHz: 2 chains, 802.11a/n/ac, max ~867 Mbps, antenna gain ~2.5 dBi
-
-
Ethernet: 2 × Gigabit ports
-
PoE‑IN: 802.3af/at, ~17‑57 V
-
PoE‑OUT (port 2): Passive PoE up to ~57 V, max per‑port ~500 mA or ~400 mA depending on input voltage
-
Dimensions: Round: ⌀136 mm × 30 mm, Square: 145 mm × 145 mm × 30 mm
-
Operating ambient temperature: ‑40 °C to +50 °C
-
MTBF: ~100,000 hours at 25 °C
-
IPsec hardware acceleration: Yes
