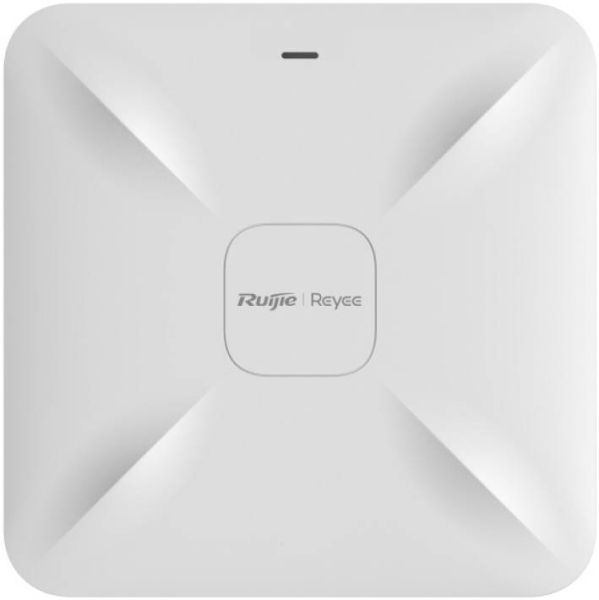

Ruijie Reyee RG-RAP2200(E) Wi-Fi 5 AC1300 Dual Band Ceiling Access Point (Up to 1.267 Gbps) with 2×Gigabit Ports and Cloud Management
-
High-performance ceiling-mount WiFi 5 (AC1300) access point with up to ~1.267 Gbps aggregate wireless speed.
-
Dual-band operation (2.4 GHz + 5 GHz) with 2×2 MIMO architecture for each band.
-
Two Gigabit Ethernet ports for uplink/backhaul flexibility.
-
Supports PoE (802.3af/at) for easy installation without separate power adapter.
-
Compact size (194 × 194 × 35 mm) and lightweight (~0.45 kg) for unobtrusive ceiling or wall deployment.
-
Designed for dense client environments: supports ~110 users on 5GHz and cloud/manageability features.
-
Built-in antennas ensure sleek installation; supported mounting hardware included.
-
Robust for commercial/enterprise use: supports 0-40 °C operating temp, non-condensing humidity, and cloud-based management.
-
Wireless standard: WiFi 5 (IEEE 802.11ac Wave2 / Wave1) + 802.11a/b/g/n
-
Bands: 2.4 GHz (~2.4 GHz–2.4835 GHz) and 5 GHz (~5.150–5.350 GHz / 5.725–5.850 GHz)
-
Spatial streams: 2×2 MIMO (2.4 GHz) & 2×2 MIMO (5 GHz)
-
Maximum wireless throughput: Up to ~400 Mbps (2.4GHz); up to ~867 Mbps (5GHz); aggregate ~1.267 Gbps per AP
-
Ethernet ports: 2 × Gigabit (10/100/1000 Base-T)
-
Power options: PoE (IEEE 802.3af/802.3at) or DC 12 V/1.5 A adapter; Maximum power consumption ≤ 12.95 W
-
Operating temperature: 0 °C to 40 °C
-
Storage temperature: -40 °C to 70 °C
-
Operating humidity: 5% to 95% non-condensing
-
Mounting: Ceiling or wall mount
-
Antennas: Built-in omnidirectional (2dBi at 2.4GHz & 2dBi at 5GHz)
-
Management/features: Cloud managed via Ruijie Cloud; supports many clients (~110 on 5GHz)
