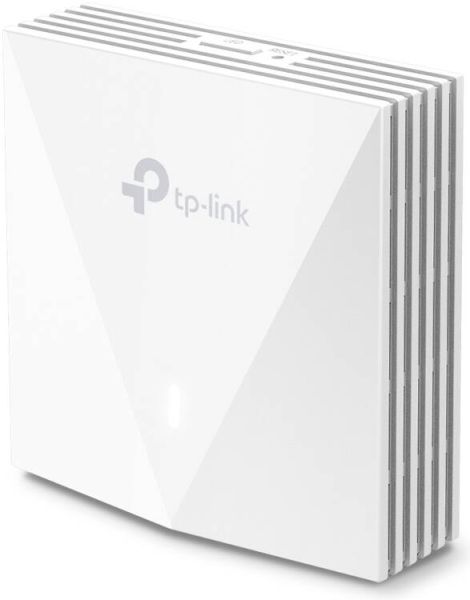

TP-Link EAP650-Wall AX3000 WiFi 6 Wall Plate Access Point Up to 574 Mbps (2.4GHz) and 2402 Mbps (5GHz) Gigabit Uplink + Downlink PoE-Powered Omada SDN Managed
-
Wall-plate-style WiFi 6 access point delivering up to ~2976 Mbps combined wireless throughput (574 Mbps 2.4GHz + 2402 Mbps 5GHz).
-
Gigabit Ethernet uplink port for reliable wired backhaul; downlink port allows wired device connection in the same outlet.
-
PoE-powered (802.3af/at) for easy installation without new power outlets.
-
Dual-band internal antennas deliver strong omni-directional coverage with 2×3 dBi on 2.4GHz and 2×5 dBi on 5GHz.
-
Supports over 100 concurrent wireless clients—ideal for hotel rooms, apartment units, dorms or high-density offices.
-
Managed via TP-LINK’s Omada SDN platform, offering centralized deployment, guest network configuration and seamless roaming.
-
Professional design with built-in wall plate form factor makes it ideal for hospitality, residential suites or modern workspaces.
-
Wireless Standards: IEEE 802.11ax / ac / n / g / b / a
-
Maximum Wireless Data Rates: Up to 574 Mbps on 2.4 GHz + 2402 Mbps on 5 GHz (combined ~2976 Mbps)
-
Frequency Bands: 2.4 GHz & 5 GHz
-
Ports & Interfaces:
-
1 × 10/100/1000 Mbps (Gigabit) uplink Ethernet port
-
1 × 10/100/1000 Mbps (Gigabit) downlink Ethernet port (wired device connection)
-
-
Power Supply: Supports 802.3af/at PoE input (Power over Ethernet)
-
Maximum Power Consumption: Approx. 11.5 W (typical)
-
Dimensions (W × D × H): 86 mm × 86 mm × 42.6 mm
-
Antenna Configuration: Dual‑band internal antennas: 2.4 GHz: 2 × 3 dBi; 5 GHz: 2 × 5 dBi
-
Mounting: Wall‑plate form factor with mounting kit included (fits standard junction boxes)
-
Client Capacity / Coverage: Supports 100+ concurrent clients; designed for in‑room deployments
-
Wireless Features: Up to 16 SSIDs (up to 8 per band); band steering; automatic channel assignment; transmit power control; QoS (WMM); seamless roaming; load balancing; airtime fairness
-
Security & Management Features: WPA‑Personal/Enterprise, WPA2, WPA3; VLAN support; guest network options; MAC/IP filtering; captive portal support; rogue AP detection
-
Environmental Conditions: Operating temperature 0 °C–40 °C; storage temperature –40 °C–70 °C; operating humidity 10%–90% non‑condensing; storage humidity 5%–90% non‑condensing
