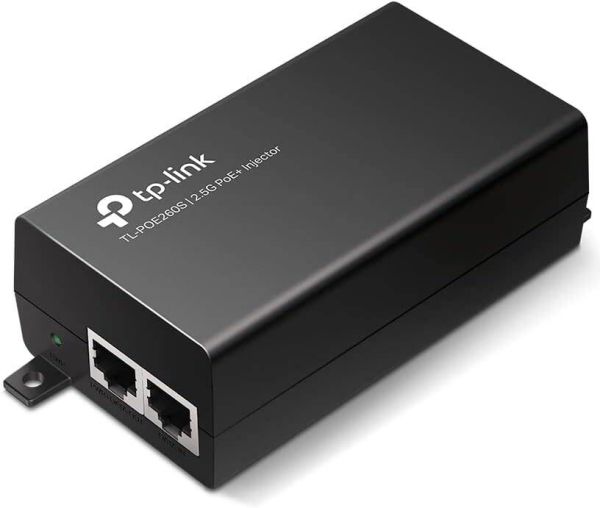

TP‑Link TL-POE260S 2.5G PoE+ Injector – Dual 2.5 Gbps Ports, IEEE 802.3af at Compliant, 30 W Output, Wall/Desktop Mountable

Model: TL‑POE260S

Network Standards & Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3af, IEEE 802.3at

Interfaces:

• 1 × RJ‑45 data‑in port (10 Mbps / 100 Mbps / 1 Gbps / 2.5 Gbps)

• 1 × RJ‑45 power+data‑out port (10 Mbps / 100 Mbps / 1 Gbps / 2.5 Gbps)

• 1 × AC socket (integrated power supply)

Network Media/Cabling Support:

• 10BASE‑T: UTP Cat 3/4/5 cable (max 100 m) or 100 Ω STP (max 100 m)

• 100BASE‑TX: UTP Cat 5/5e (max 100 m) or STP equivalent

• 1000BASE‑T: UTP Cat 5/5e/6 (max 100 m)

• 2.5GBASE‑T: UTP Cat 5e or above (max 100 m)

PoE / Power Output: Supports IEEE 802.3af/at standards; supplies up to 30 W to the powered device

Power Input: 100‑240 V AC, 50/60 Hz (via integrated power supply)

Basic Functions: Auto‑Sensing Algorithm (automatically detects power needs of the connected device), Plug‑and‑Play (no configuration required), supports both desktop and wall‑mount installation

Operating Environment:

• Operating Temperature: 0 °C to 40 °C

• Storage Temperature: ‑40 °C to 70 °C

• Operating Humidity: 10%–90% RH (non‑condensing)

• Storage Humidity: 5%–90% RH (non‑condensing)

Certifications & Compliance: FCC, CE, RoHS

Package Contents: Injector unit, power cord, RJ45 cable, wall‑mounting kit, installation guide
