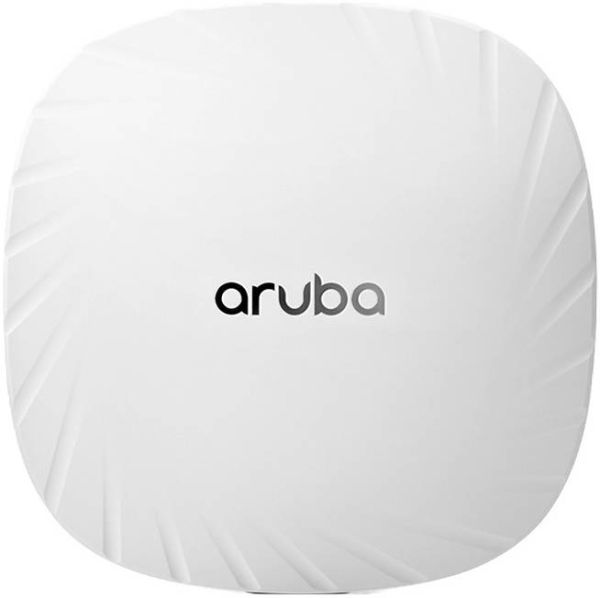

Aruba R2H28A AP-505 Dual Band Access Point 5GHz (1.2 Gbps), 2.4GHz (574 Mbps) Omni Antenna

General / Wireless

• Model / Series: Aruba AP‑505 (R2H28A)

• Standard: IEEE 802.11ax (Wi‑Fi 6), compatible with a/b/g/n/ac

• Dual 2×2:2 radios (2.4 GHz + 5 GHz)

• Max rates: 574 Mbps (2.4 GHz), 1.2 Gbps (5 GHz), ~1.77 Gbps combined

• Antennas: 2 internal omni-directional antennas

• Antenna gain: ~4.9 dBi (2.4 GHz), ~5.7 dBi (5 GHz)

• Client capacity: Up to 256 clients per radio

• BSSIDs: 16 per radio

Interfaces & Power

• 1 × Gigabit RJ‑45 Ethernet port

• 1 × USB 2.0 Type A host port

• Serial console: micro‑USB

• PoE support: 802.3af / 802.3at (Class 4 PD)

• Optional DC input: 12 V

Power Consumption

• Max power (with USB): ~14.2 W (DC) / ~16.5 W (PoE)

• Max power (without USB): ~8.9 W (DC) / ~11.0 W (PoE)

• Idle mode: ~4.3 W (DC) / ~6.2 W (PoE)

• Deep-sleep: ~1.7 W (DC) / ~3.7 W (PoE)

Mechanical / Environmental

• Operating temp: 0 °C to +50 °C

• Storage temp: –40 °C to +70 °C

• Operating humidity: 5% to 93% non-condensing

• Plenum rated (UL2043)

Features / Capabilities

• Security: WPA3, WPA2, WPA, Enhanced Open (OWE)

• Wi‑Fi 6 features: OFDMA, MU‑MIMO, Target Wake Time, client steering

• IoT support: Bluetooth 5 (BLE) + Zigbee

• Interference mitigation: Advanced Cellular Coexistence (ACC)
