Specification

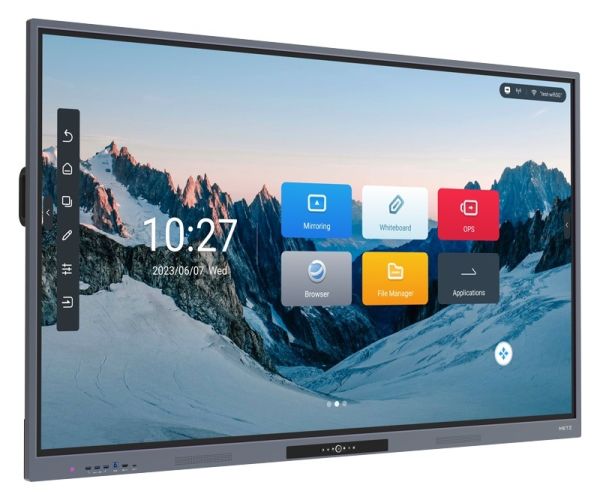

Machine overview

• All-in-One machine

• Product name: Interactive Flat Panel Display

• Product number: 65KD1

• Color: Palladium blue

• Material: Metal aluminum (front) + metal (rear)

• Features: Narrow bezels, low touch height

Display screen

• LCD panel

• Size: 65 inch

• Display area (H × V): 1428.48 mm × 803.52 mm

• Backlight type: LED

• Resolution: 3840 × 2160

• Brightness: 350 cd/m²

• Contrast: 1200:1

• Response time: 8 ms

• Viewing angle: ≥178°

• Refresh rate: 60 Hz

Touch screen

• Touch panel: 4 mm anti-glare tempered glass

• Touch technology: Infrared touch

• Touch points: 20 points

• Touch resolution: 32767 (H) × 32767 (V)

• Touch accuracy: ±1 mm

• Response time: ≤8 ms

• Interface driver: USB free drive

• Writing style: Fingers or opaque objects

• Anti-light ability: 80KLux

• Support system: Android / Windows

System configuration – Android

• Android version: Android 11.0

• CPU / GPU: ARM Cortex A73×4 + A53×4 / ARM Mali-G52 MP8

• RAM: 8G

• ROM: 128G

• Compatible video formats:
  H263, Sorenson Spark, VP6, VP8, VP9, mjpa, M-JPEG, MPEG-1, XVID, avs, avs+, avs2, 4K VP9, 8K VP9

• Front physical buttons:
  Whiteboard, mirroring, multi-function, power, multitasking, volume, brightness

• Front interface:
  USB3.0×3, HDMI IN×1, TOUCH×1, Type-C×1

• Rear interface:
  HDMI IN×2, TOUCH×2, USB3.0×2, Type-C×1, MIC IN×1, Line OUT×1, RS232×1, SPDIF×1,
  LAN IN×1, LAN OUT×1, HDMI OUT×1, Android USB2.0×1, USB2.0 OTG×1, DP IN×1

• Speaker: 15W×2 (forward)

• WiFi: Built-in dual 2.4G / 5G modules, support WiFi 6

• Bluetooth: Built-in

Power specifications

• Input power: 100~240V 50/60Hz

• Power consumption (about): 300W

• Standby power consumption: ≤0.5W

• Switch: With switch button

• Power interface: Y shaped socket

Accessories

• Guide book: 1 set

• Wall mount bracket: 1 set

• Remote control: 1 pc

• Touch pen: 2 pcs

• Power cable (3m length): 1 pc local power cable

Environmental specifications

• Storage temperature: -20 ~ +60°C

• Storage humidity: 10%RH ~ 90%RH

• Operating temperature: 0 ~ +50°C

• Working humidity: 10%RH ~ 90%RH

• Service life: ≥30000 hours

Optional

• OPS computer: Standard 80 Pin Interface OPS

Installation specifications

• Machine size (L × H × T): 1493.43 × 904.78 × 102.87 mm

• Machine size including wall mount bracket: 1493.43 × 904.78 × 124.87 mm

• Hole distance of wall mount: 600(H) × 400(V) mm

• Packing: Carton

• Package size: 1623 × 1065 × 215 mm

• Net weight: 40 Kg

• Gross weight: 47 Kg

• Wall mount bracket: Free include: Vertical bar, Horizontal beam, Accessories
