Canon imageRUNNER 2425, 25ppm Multifunction Laser Printer, 600 x 600 DPI Resolution, 7-inch WVGA Color Touchscreen Control Panel

Main Unit

• Machine Type: A3 Monochrome Laser Multifunctional
• Core Functions: Print, Copy, Scan, Send, and Optional Fax
• Processor: 1GHz Dual Core Processor
• Control Panel: 17.8cm (7 inch) TFT LCD WVGA Colour Touch Panel
• Memory: Standard 2.0GB RAM
• Storage: Standard 64GB eMMC (Available space: 30GB)

Interface Connections

• Network:
  • Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
• Others:
  • Standard: USB 2.0 (Host) x3, USB 2.0 (Device) x1

Paper Supply Capacity (A4, 80 gsm)

• Standard: 330 sheets
• Maximum: 580 sheets (with Cassette Feeding Module-AK1)

Paper Output Capacity (A4, 80 gsm)

• Maximum: 250 sheets

Supported Media Types

• Multi-purpose Tray: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Label, Pre-punched, Envelope
• Paper Cassette: Plain, Recycled, Colour, Pre-punched

Supported Media Sizes

• Multi-purpose Tray: A3, A4, A4R, A5, A5R, B4, B5, B5R, Envelopes [No. 10, Monarch, ISO-C5, DL], Custom Sizes (95.0 x 139.7 mm to 297.0 x 431.8 mm)
• Paper Cassette: A3, A4, A4R, A5R, B4, B5, B5R

Supported Media Weights

• Multi-purpose Tray: 60 to 157 gsm
• Paper Cassettes: 64 to 90 gsm
• Duplex: 60 to 90 gsm

Warm-up Time

• With Quick Start Up Mode ON: 4 seconds or less
• From Sleep Mode: 10 seconds or less
• From Power On: 12 seconds or less

Dimensions (W x D x H)

• iR 2425: 627 x 665 x 516 mm
• iR 2425i: 627 x 692 x 616 mm

Installation Space (W x D)

• 1,065 x 1,285 mm

Weight

• iR 2425i: Approx. 39.2 kg (including toner)
• iR 2425: Approx. 34.2 kg (including toner)

Print Specifications

• Print Speed (BW): Up to 25 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R)
• Print Resolution: 600 x 600 dpi
• Page Description Languages:
  • Standard: UFR II, PCL6
  • Optional: Adobe® PostScript® 3™
• Direct Print Supported File Types: PDF, EPS, TIFF/JPEG, XPS (via RUI, USB, or Network)
• Mobile and Cloud Printing: AirPrint, Mopria, Google Cloud Print, Canon PRINT Business, uniFLOW Online

Print Features

• Secure Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/Orientations, Toner Reduction, Poster Printing, etc.

Copy Specifications

• Copy Speed (BW): Up to 25 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R)
• First-Copy-Out Time (A4, BW): Approx. 7.4 seconds or less
• Copy Resolution: 600 × 600 dpi
• Magnification: 25% - 400% (1% Increments)
• Copy Features: Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Interrupt Mode, Job Build, etc.

Scan Specifications

• Type:
  • iR 2425: Standard Platen Cover
  • iR 2425i: Duplexing Automatic Document Feeder (2-sided to 2-sided)
• Document Feeder Capacity: 50 Sheets (80 gsm)
• Scan Speed (BW/CL, A4):
  • 1-sided: 35/25 ipm (300 dpi), 25/13 ipm (600 dpi)
  • 2-sided: 12/8 ipm (300 dpi), 8/4 ipm (600 dpi)
• Scan Resolution: Up to 600 x 600 dpi (BW), up to 300 x 300 dpi (Colour)

Send Specifications

• Destination: E-mail, Internet FAX (SMTP), SMB 3.0, FTP, WebDAV
• Address Book: LDAP (2,000), Local (1,600), Speed dial (200)
• Send Resolution: Up to 600 x 600 dpi

Fax Specifications

• Modem Speed: Super G3: 33.6 kbps, G3: 14.4 kbps
• Compression Method: MH, MR, MMR, JBIG
• Resolution: Up to 400 x 400 dpi (Ultrafine)

Fax Features

• Sender's Name (TTI), Direct Send, Delayed Send, Preview, Job Done Notice, etc.

Security Specifications

• Authentication: User Authentication, Department ID, uniFLOW Online, and more.
• Document Security: Secure Print, Encrypted PDF, S/MIME Support
• Network Security: TLS, IPSec, IEEE802.1X authentication, SNMPv3, and more.
• Device Management and Auditing: Admin Password, Audit Log, Digital Certificate Management

Environmental Specifications

• Operating Environment: Temperature: 10 to 30 ºC, Humidity: 20 to 80 % RH
• Power Source: 250 V, 50/60 Hz, 10 Amp
• Power Consumption:
  • Maximum: 1,500 W
  • Standby: 22.1 W
  • Sleep Mode: 1 W (Wireless LAN off), 2 W (Wireless LAN on)

Consumables

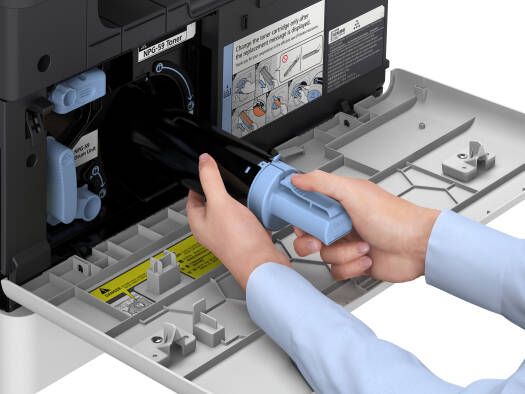

• Toner: C-EXV 60 Black Toner
• Toner Yield: Approx. 10,200 impressions (A4, 6% coverage)

Software and Printer Management

• Tracking and Reporting: uniFLOW Online
• Remote Management: iW Management Console, eMaintenance, Content Delivery System
• Scanning Software: ScanGear

Paper Supply Options

• Cassette Feeding Module-AK1: 250 sheets x 1 (80 gsm), Paper Weight: 64 to 90 gsm

Security and System Options

• Security Options: Picture Login, Data Security, Network and Device Security Features
• System Accessories: PCL International Font Set-A1, PS Printer Kit-CM1
• Fax Accessories: Super G3 FAX Board-BE1, Remote Fax Kit-A1
