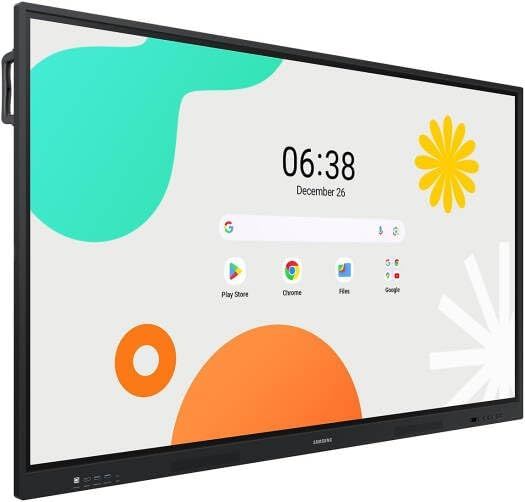

Samsung LH75WAFWLGCXUE WAF Series 75" 4K UHD Interactive Display Android‑14 OS Infrared Multi‑Touch 40‑Point 2× HDMI 2.1 4× USB RJ45 Wi‑Fi 5 Bluetooth HDMI Out RS232 Audio In/Out 64GB Storage
-
Brand: Samsung
-
Model: LH75WAFWLGCXUE
-
Display Size: 75 inches 4K UHD (3840×2160)
-
Panel Type: IPS LCD with LED backlight
-
Touch: Infrared multi‑touch up to 40 simultaneous points
-
Operating System: Android‑14 with EDLA certification
-
Internal Storage: 64 GB flash memory
-
Connectivity: 2× HDMI 2.1, 4× USB, RJ45 LAN, RS232
-
Wireless: Wi‑Fi 5 (802.11ac), Bluetooth
-
Additional: HDMI Out video output, stereo audio in/out
-
Brightness (Typ.): 400 nits
-
Contrast Ratio: ~1200:1
-
Viewing Angle: 178°/178°
-
Operation Time Support: 12/7
| Display Size | 75 inches |
| Resolution | 3840 × 2160 (4K UHD) |
| Panel Type | IPS LCD with LED backlight |
| Brightness (Typ.) | 400 nits |
| Contrast Ratio | 1,200:1 |
| Viewing Angle | 178° horizontal / 178° vertical |
| Response Time | 8 ms |
| Touch Technology | Infrared multi‑touch up to 40 points |
| Operating System | Android‑14 (EDLA certified) |
| Internal Storage | 64 GB flash |
| HDMI Inputs | 2 × HDMI 2.1 |
| HDMI Out | Yes |
| USB Ports | 4 × USB |
| Networking | RJ45 LAN, Wi‑Fi 5, Bluetooth |
| Control | RS232 In |
| Audio | Stereo mini jack In/Out |
| Dimensions | 1716.5 × 1031.9 × 87.7 mm |
| Weight | 49.2 kg (set) |
| VESA Mount | 800 × 400 mm |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | 450 W (On), 0.5 W (Sleep) |
The Samsung LH75WAFWLGCXUE WAF Series 75" Interactive Display is a professional Android‑based interactive panel designed for education, collaboration, and business environments. It features a large 75‑inch 4K UHD (3840×2160) IPS panel with wide 178° viewing angles and 400 nits brightness, delivering sharp and vivid visuals suitable for presentations and interactive content. The display supports advanced infrared multi‑touch technology with up to 40 simultaneous points, enabling natural interaction and group collaboration.
Powered by Android‑14 with EDLA certification, the WAF series supports Google services, allowing easy access to Google Play, YouTube and educational applications. With 64 GB internal storage and substantial RAM, it provides responsive performance for daily interactive use. Connectivity is robust, including dual HDMI 2.1 inputs, multiple USB ports, RS232 and RJ45 LAN, plus wireless Wi‑Fi 5 and Bluetooth support. Additional features such as HDMI out and stereo audio interfaces expand connectivity options.
Built for reliable operation and intuitive control, this display includes front controls and broad compatibility with external devices through USB‑C. Its sleek design with narrow bezels and VESA mounting support makes it suitable for classrooms, meeting rooms, and collaborative workspaces where interactive learning and content delivery are essential.
