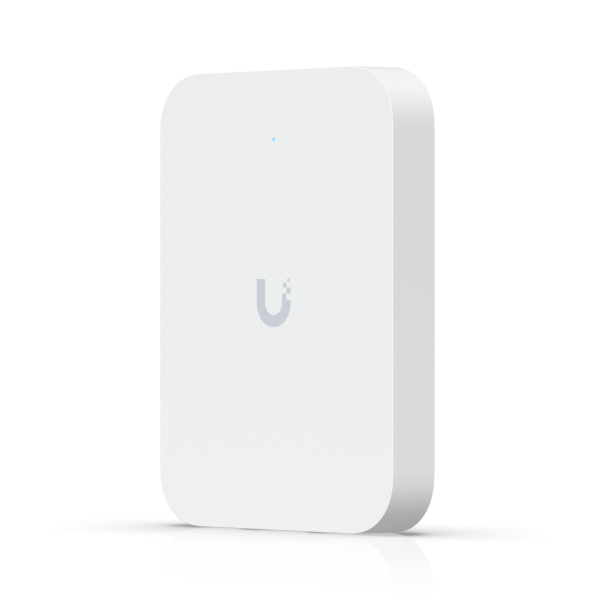

Ubiquiti U7‑IW In‑Wall WiFi 7 Access Point 2.5 GbE PoE Passthrough, 4‑Stream w/ UniFi OS Support

متوفر في المخزن

Warranty: عام واحد

رمز المنتج

U7‑IW

599٫00 د.إ.‏

In-wall WiFi 7 access point with 4 spatial streams (dual-band)
Up to 4.3 Gbps on 5 GHz + 688 Mbps on 2.4 GHz
3 × 2.5 GbE RJ45 ports, including PoE input and one PoE passthrough
Low power draw ~13 W (excluding PoE output)
Coverage ~115 m², supports 200+ client devices
Wall‑mount design with compact dimensions (137 × 98.7 × 30.2 mm)
Advanced features: meshing, roaming, band steering, captive portal, VLANs, QoS
Rugged environmental tolerance: –30 °C to +40 °C, 5–95 % humidity non‑condensing

GTIN: 810084698785

Manufacturer: Ubiquiti

Model: U7‑IW

Colour: اسود

Dimensions: 24.6 cmx 14.7cmx 6.6cm (L x W x H)

Weight: 0.599000

Warranty: عام واحد

Specifications – Ubiquiti U7‑IW (UniFi In‑Wall WiFi 7 Access Point)

Overview

Wall-mounted / in-wall access point design for hospitality and dense deployments
Integrated PoE passthrough and multi-port connectivity

Wireless / Radio

WiFi 7 (802.11be), dual-band (2.4 GHz + 5 GHz)
4 spatial streams (combined)
Max data rate: 5 GHz up to 4.3 Gbps; 2.4 GHz up to 688 Mbps
2×2 MU‑MIMO on both bands
TX power: ~24 dBm @ 5 GHz, ~23 dBm @ 2.4 GHz
Antenna gain: ~8 dBi (5 GHz), ~4 dBi (2.4 GHz)
Channel bandwidth: supports HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 MHz

Port / Networking & PoE

Performance / Deployment

Supports 200+ client devices
Approx coverage area: 115 m²
Features: wireless meshing, band steering, 802.11r/s/v roaming, VLANs, captive portal, guest isolation, QoS, RADIUS support
