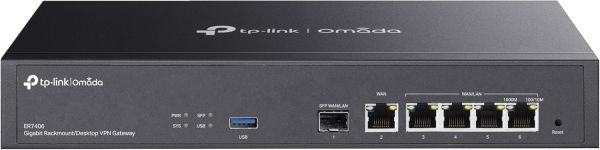

TP-Link ER7406 Omada Gigabit Rackmount/Desktop VPN Gateway 1× SFP + 5× Gigabit RJ45 Ports USB 3.0 LTE Backup Multi‑WAN Load‑Balancing and Full VPN Suite
-
Gigabit multi‑WAN gateway with 1 SFP + 5 Gigabit RJ45 ports for high‑speed wired networking.
-
USB 3.0 port supports LTE dongle backup or USB storage integration.
-
Dual‑core ARM CPU with 512 MB DRAM delivers powerful routing, DPI and VPN processing.
-
Comprehensive VPN support: IPsec, SSL, GRE, WireGuard, OpenVPN and PPTP/L2TP protocols.
-
Advanced security: DPI, IPS/IDS, DoS/DDoS protection, URL/IP/MAC filtering and 4 kV surge protection.
-
Fanless steel chassis suitable for rack‑mount or desktop environments.
-
Centralised management via Omada SDN — make networks easier to deploy and manage.
-
Model: ER7406 – Omada Gigabit Rackmount/Desktop VPN Gateway
-
Ports & Interfaces: 1× Gigabit SFP WAN/LAN port; 1× Gigabit RJ45 WAN port; 4× Gigabit RJ45 WAN/LAN ports; 1× USB 3.0 port (supports USB storage and LTE dongle)
-
Processor/Memory: Dual‑core ARM Cortex‑A53, 512 MB DDR4
-
Network Standards & Protocols: IEEE 802.3 / 802.3u / 802.3ab / 802.1q; TCP/IP, NAT, DHCP, PPPoE, GRE, IPsec, OpenVPN, WireGuard, SSL, L2TP, PPTP
-
Security & Management: DPI, IPS/IDS, DoS/DDoS defense, IP/MAC/URL filtering, centralised cloud/SDN management
-
Performance Metrics: NAT throughput ~940 Mbps; WireGuard VPN ~341 Mbps; supports ~150,000 concurrent sessions
-
Power Supply: 100‑240 VAC, 50/60 Hz; Maximum power consumption ~7.5 W
-
Surge Protection: 4 kV; Certifications: CE, FCC, RoHS
-
Mounting Options: Rack‑mountable or desktop.
