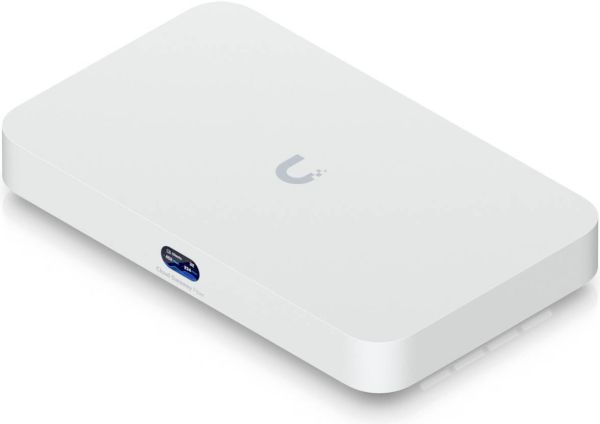

Ubiquiti UCG‑Fiber Cloud Gateway 10G Fiber & RJ45 WAN, 2.5G LAN, 30W PoE+

متوفر في المخزن

Warranty: عام واحد

رمز المنتج

UCG-Fiber

1٬450٫00 د.إ.‏

Original 100% Visit Store →

انتقل إلى النهاية معرض الصور

main product photo

تخطي إلى بداية معرض الصور

المزيد من المعلومات

Dual 10G fiber + RJ45 WAN ports for high-bandwidth internet connections
5 Gbps IDS/IPS routing and advanced firewall with layer‑7 filtering
Integrated 4-port 2.5G switch with one PoE+ port (30 W budget)
Quad-core 2.2 GHz ARM Cortex-A73 with 3 GB DDR4 memory
Includes NVMe SSD slot for UniFi Protect / NVR use
Supports managing 50+ UniFi devices and up to 500 users
Multi-WAN load balancing, VPN (WireGuard / OpenVPN / IPsec), OSPF routing
Compact desktop design with 0.96″ status display, polycarbonate chassis

GTIN: 810177161219

Manufacturer: Ubiquiti

Colour: ابيض

Dimensions: 24.13×23.62×7.87 cm (L x W x H).

Weight: 1.500000

Warranty: عام واحد

Specifications – Ubiquiti UCG‑Fiber (Cloud Gateway Fiber)

Overview & Role

Cloud Gateway desktop device supporting UniFi applications (Network, Protect, Access, Talk, Connect)
Supports 50+ managed UniFi devices, up to 500 concurrent clients

Hardware & Performance

Processor: Quad-core ARM Cortex‑A73 @ 2.2 GHz
Memory: 3 GB DDR4
Storage: NVMe SSD slot (up to 2 TB) for NVR use

Network Interfaces & Ports

WAN: 1 × 10G SFP+ port, 1 × 10G RJ45 port
LAN / Switch: 1 × 10G SFP+ port, 4 × 2.5G RJ45 ports (one port with PoE+)
PoE: 1 PoE+ port, 30 W budget
Power input: 54 V DC / 1.1 A adapter; supports 100–240 V AC input
Max power consumption (excluding PoE output): 29.4 W
PoE voltage range: 50‑57 V DC

Throughput & Security / Features

IDS / IPS routing throughput: 5 Gbps
Redundant WAN, failover & load balancing
QoS / traffic shaping by application / domain / country
Stateful firewall and Layer‑7 filtering
VPN protocols: WireGuard, OpenVPN, L2TP, Teleport, IPsec
Dynamic routing: OSPF support
MAC address table up to 4,000 entries
