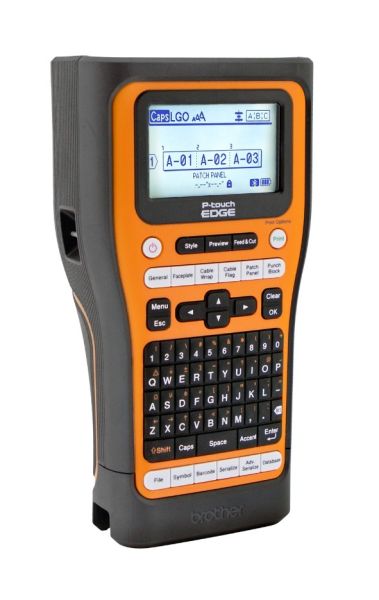

Brother PT-E560BTVP Label Printer Handheld Pro Labelling Machine

TECHNICAL SPECS

General

• In the box: Handheld label printer, Li-ion battery pack, 24mm flexible ID tape (8m), USB-C cable (3ft), computer software (download), mobile apps (download), hand strap, deluxe carrying case, quick start guide, patch panel ruler card, personal safety guide

• Dimensions: 5.2in x 9.6in x 3.15in (132mm x 244mm x 80mm)

• Weight: Without tape and battery: 2.43lbs. (1.1kg)

• Memory:

  • Standalone: Up to 99 label designs (1,800 characters / file)

  • Download: Up to 99 templates, databases & images (6MB)

• Control panel:

  • 70 rubber keys (QWERTY)

  • 17 characters x 2 rows LCD and backlight

• Operating temperature / humidity: 50° F to 95° F (10° C to 35° C), 20% to 80% non-condensing

• Storage temperature / humidity: -4° F to 140° F (-20° C to 60° C), 20% to 80% non-condensing

• Warranty: 2 Year Limited Exchange Warranty

Power & Print Performance

• Power: Optional USB-C PD AC adapter (5VDC, 3A / 9VDC, 3A / 12VDC, 2.5A / 15VDC, 2A, 20VDC, 1.5A)

• Battery: Rechargeable Li-ion battery

• Battery yield: 5 tapes on one charge

• Battery charging options: USB-C PD AC adapter or any USB-C power source

• Battery charging time: 3 hours

• Energy conservation certifications: ENERGY STAR

• Print technology: Laminating thermal transfer

• Resolution: 180dpi

• Max print speed: Up to 1.2ips via AC adapter, up to 0.78ips via battery

• Max print width: 0.71in (18mm)

• Max print length: 39.37in (1m)

Connectivity & Compatibility

• Communications interfaces: USB-C 3.0 (Windows) / 2.0 (Mac), Bluetooth Classic (SPP) MFi (iAP)

• OS compatibility: Windows, MacOS

  • For the most up-to-date compatibility, visit our Support Page

• Print driver compatibility: Windows, Mac

  • For the most up-to-date compatibility, visit our Support Page

• SDK support: Android, iOS

• Support software:

  • Windows Printer Driver

  • P-touch Editor v6.x for Windows

  • P-touch Editor v5.x for Mac

  • Transfer Manager v2.x for Windows

  • Transfer Express for Mac

  • Update Software for Windows

  • Firmware Update Tool for Windows & Mac

• Apps:

  • Pro Label Tool for Android & iOS

  • iLink&Label for Android & iOS

  • iPrint&Label for Android & iOS

  • Mobile Transfer Express for Android & iOS

  • Print SDK Demo for Android

Print Operations

• Printer languages: Raster, ESC P, P-touch Template (download), Mobile SDK

• Linear barcodes:

  • Code39

  • Code128

  • I-2/5 (ITF)

  • UPC-A/E

  • EAN-8/13

  • GS1-128 (UCC/EAN-128)

  • Codabar (NW-7)

• 2D barcodes: QR Code, Data Matrix

• Fonts: Helsinki, Brussels, US, Los Angeles, San Diego, Florida, Calgary, Belgium, Atlanta, Adams, Brunei, Sofia, Germany, Letter Gothic

• Function keys: General, faceplate, cable wrap, cable flag, patch panel / terminal strip, punch block, barcode, serialize, advanced serialization, database, heat shrink tube (auto activation), self-laminate tape (auto activation)

• Keyboard: QWERTY, mini size rubber (70 keys)

• Print capabilities:

  • Up to 25 alpha-numeric characters

  • Up to 99 alpha-numeric character increments (individual or simultaneous)

  • Auto formats (faceplate, cable wrap, cable flag, patch panel / terminal strip, punch block, heat shrink tube, self-laminating)

  • 476 symbols

  • Text insert

  • Multi-block up to 99

  • 20 languages

  • Up to 99 downloadable templates / databases / graphic images (6MB)

• Print layout:

  • Real Print preview

  • Up to 7 lines per label

  • 10 type styles

  • 9 type sizes

  • 5 type widths

  • Invert & vertical printing

  • Repeat printing up to 99 copies

Media

• Cutter: Automatic dual blade cutter (full and easy to peel multi-label strip cutter)

• Media sensors: Smart Identification

• Media type: HGe, TZe, HSe, STe

• Media loading: Cartridge

• Media sizes: 24mm, 18mm, 12mm, 9mm, 6mm, 3.5mm

• Media width: 24mm (0.94in) max

• Max print height: 0.71in (18mm)
