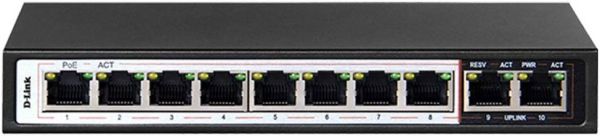

D‑Link DES-F1010P-E 10‑Port 10/100 PoE+ Long‑Range Surveillance Switch (8 PoE + 2 Uplink, 96W, 250m Mode)
Estimated delivery within UAE 1–2 working days
Delivery to other countries 3–5 working days
-
Ten-port switch: 8 PoE+ + 2 uplinks for data-only connectivity
-
Delivers up to 96W total PoE budget, up to 30W per port
-
Supports extended-range PoE transmissions up to 250 m
-
2 Gbps switching capacity, store-and-forward architecture
-
Built-in 6 kV lightning/surge protection for safer outdoor connections
-
Silent, fanless metal design for durability and quiet environments
-
Plug‑and‑play operation with auto MDI/MDIX and IEEE 802.3x flow control
-
Compact and rugged: 184 × 94 × 27 mm, operating 0–40 °C
2. Detailed Specifications (from official source)
-
Model / Type: DES‑F1010P‑E – 10‑Port 10/100 Long Range PoE+ Surveillance Switch
-
Ports & Connectivity:
• 8 × 10/100 Mbps RJ‑45 ports with PoE (IEEE 802.3af / 802.3at)
• 2 × 10/100 Mbps RJ‑45 uplink ports (non‑PoE)
• Auto MDI/MDIX on all ports -
Switching / Performance:
• Switching capacity: 2 Gbps
• Forwarding / filtering rate:
– 10 Mbps port: 14,800 packets per second
– 100 Mbps port: 148,800 packets per second
• Flow control: IEEE 802.3x supported -
PoE (Power over Ethernet):
• Supports IEEE 802.3af and IEEE 802.3at PoE standards
• Total PoE power budget: 96 W
• Long‑reach mode: supports up to 250 meters for PoE / data over Cat5e / Cat6 cable -
Physical & Environmental:
• Dimensions (L × W × H): 184 × 94 × 27 mm
• Weight: 0.95 kg
• Operating temperature: 0 °C to 40 °C
• Operating humidity: 10% to 90% (non‑condensing) -
Power / Electrical:
• External power adapter: 100–240 V AC, 50/60 Hz (output 52 V / 1.85 A) -
Other Features:
• Fanless design (silent operation)
• Plug‑and‑play installation (no configuration required)
• Support for long reach / extended PoE to 250 m
• Auto MDI/MDIX crossover on all ports
