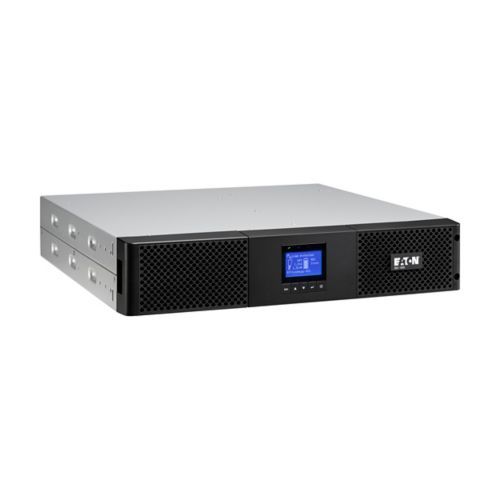

Eaton 9SX1500IR – 9SX UPS, 1500 VA / 1350 W, Input: C14, Outputs: (6) C13, Rack 2U
Estimated delivery within UAE 1–2 working days
Delivery to other countries 3–5 working days
-
Battery: 4 × 12V/9Ah sealed lead-acid, hot-swappable, ABM & temperature-compensated charging, deep discharge protection.
-
Electrical Output: 6 × C13 outlets, 230V, 1350W, PF 0.9, sine wave, ±2% voltage range.
-
Input: C14 connection, 230V nominal, 190–276V adjustable, PF >0.99, 50/60 Hz.
-
Topology: Online/Double-conversion with 1500 VA rating, supports extended battery modules (EBMs).
-
Communications: USB (HID), serial (RS232), dry contacts, LCD display, optional expansion slot.
-
Environmental: Noise <43 dB, altitude up to 3000 m, 0–40°C operating range, 0–95% humidity.
The Eaton 9SX1500IR is a reliable 1500 VA / 1350 W rack-mounted UPS designed for critical IT and networking equipment. Featuring hot-swappable 12V/9Ah sealed lead-acid batteries with advanced ABM and temperature-compensated charging, it ensures extended runtime and protection against deep discharge. The UPS delivers stable sine wave output across six C13 outlets, with tight voltage regulation (±2%) and a 0.9 power factor.
Equipped with USB and serial communication interfaces, dry contacts, and an LCD display, it offers easy monitoring and management. Its online/double-conversion topology supports extended battery modules for additional runtime. The unit operates quietly (
Key Features: Reliable UPS protection, hot-swappable batteries, stable sine wave output, easy monitoring, rack-mountable, extended battery capability.
