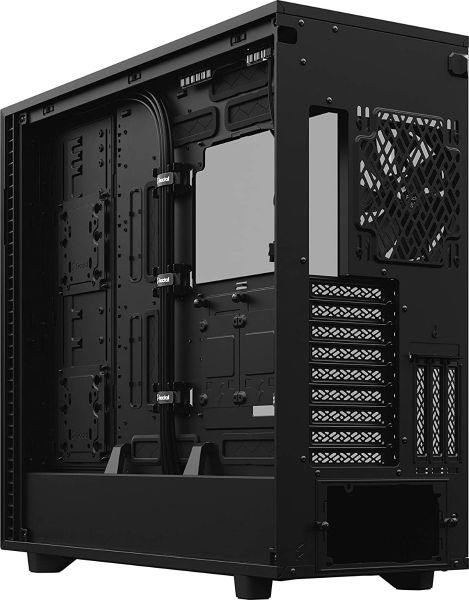

Fractal Design Define 7 XL Black Window Full Tower Case
Estimated delivery within UAE 1–2 working days
Delivery to other countries 3–5 working days
- Full‑tower, modular case with dark‑tint tempered glass and sound‑damped steel panels
- Supports EE‑ATX, E‑ATX, ATX, and large workstation boards
- Dual layout with up to 18 drive positions + 2 SSD trays
- GPU clearance up to 549 mm (open layout), ~524 mm with front fan
- CPU cooler up to 185 mm; PSU length up to 250 mm
- Cooling flexibility with mounts for 11 × 120 mm / 9 × 140 mm fans + multiple radiator support
- Front I/O: USB‑C 20 Gbps, USB‑A ×2, USB‑2 ×2, audio, power/reset
Specifications
-
Model / Part Number: FD‑C‑DEF7X‑03
-
Variant: Dark-Tint Tempered Glass + Sound-Damped Steel
-
Chassis: Modular dual-layout interior (Storage / Open)
-
Motherboard Support: EE‑ATX, E‑ATX, ATX, Micro‑ATX, Mini‑ITX, SSI‑CEB, SSI‑EEB
-
Drive / Storage Support: 6 + 2 universal 3.5″ / 2.5″ brackets (expandable to 18), 2 dedicated 2.5″ brackets, 2 × 5.25″ ODD bays
-
Expansion Slots: 9 full-height + 3 vertical
-
GPU Clearance: up to 359 mm (Storage layout); up to 549 mm (Open layout); ~524 mm with front fan installed
-
CPU Cooler Clearance: 185 mm
-
PSU Support: ATX format; maximal length 250 mm (with HDD cages installed)
-
Cooling / Fans: Up to 11 × 120 mm or 9 × 140 mm
• Front: 4 × 120 mm or 3 × 140 mm (2 × GP‑14 included)
• Top: 4 × 120 mm or 3 × 140 mm
• Rear: 1 × 120 / 140 mm (1 × GP‑14 included)
• Bottom: 2 × 120 / 140 mm -
Radiator Support: Front up to 480 / 420 mm; Top up to 480 / 420 mm; Rear 120 mm; Bottom 240 / 280 mm
-
I/O / Ports: 1 × USB 3.2 Gen 2×2 Type-C; 2 × USB 3.0 Type-A; 2 × USB 2.0; audio in/out; power & reset
-
Cable Management: ~30 mm routing space, fixed Velcro straps, cable grommets, captive thumbscrews
-
Panels: Left side: dark-tint tempered glass; Right side: sound-damped steel
-
Dimensions: 604 × 240 × 566 mm (overall), 590 × 240 × 548 mm (no feet / protrusions)
-
Weight: ~16.64 kg (case only)
-
Box Dimensions: 646 × 357 × 708 mm
