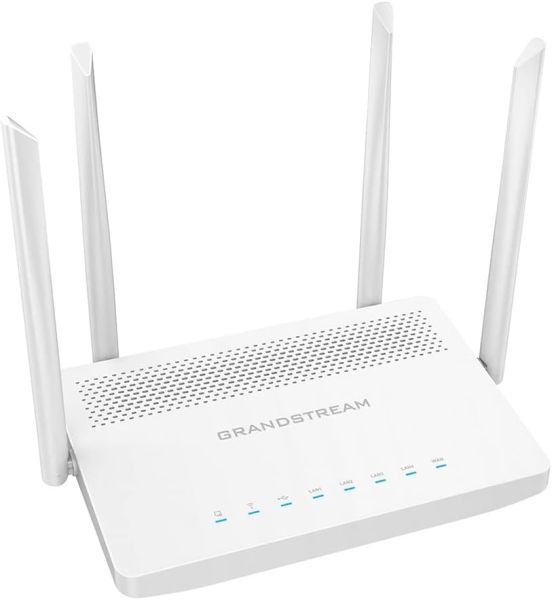

Grandstream GWN7052 Dual‑Band WiFi Router 1.27 Gbps, 5× Gigabit Ports, VPN -Mesh Support
Estimated delivery within UAE 1–2 working days
Delivery to other countries 3–5 working days
-
Dual‑band 802.11ac router providing up to 1.27 Gbps aggregate throughput
-
2×2 MU‑MIMO on both 2.4 GHz and 5 GHz bands
-
5 auto‑sensing Gigabit ports (1 WAN + 4 LAN or variant SFP WAN)
-
Supports up to 100 concurrent WiFi clients
-
Integrated VPN (IPSec, OpenVPN, L2TP, PPTP) and full routing / firewall capabilities
-
Mesh networking support with Grandstream APs
-
Advanced security: secure boot, digital signature lockdown, unique certificates
Model / Overview
-
GWN7052 (optionally GWN7052F variant)
-
Dual‑band WiFi 5 router
Wireless / Performance
-
Standard: 802.11 a/b/g/n/ac
-
Aggregate Throughput: 1.27 Gbps
-
5 GHz: up to 867 Mbps
-
2.4 GHz: up to 300 Mbps
-
2×2 MU‑MIMO both bands
-
SSIDs: up to 16 (8 per band)
-
Supports up to 100 concurrent clients
-
Mesh networking with Grandstream APs
Routing / Ports / VPN
-
Ports:
• GWN7052: 1 × Gigabit WAN + 4 × Gigabit LAN
• GWN7052F: 1 × SFP WAN + 4 × Ethernet WAN/LAN -
VPN: supports IPSec, OpenVPN, L2TP, PPTP
-
Firewall / Routing: NAT, ALG, Anti‑DoS, VLAN, port forwarding, DMZ
Security / Management
-
Secure boot, digital signature control, unique device certificates, random default passwords
-
Embedded controller (manages up to 150 APs), cloud provisioning
Antenna / RF
-
4 external antennas (2 per band)
-
Antenna gain: ~ 5 dBi
-
TX Power: ~ 23 dBm (2.4 GHz), ~ 24 dBm (5 GHz)
-
Receiver sensitivity: e.g. ~ –73 dBm (2.4 GHz MCS7), ~ –67 dBm (5 GHz MCS9)
Electrical / Environmental
-
Power: external 12 V DC, 1 A
-
Operating temperature: 0 °C to 50 °C
-
Storage temperature: –10 °C to 60 °C
-
Humidity: 10% to 90% (non‑condensing)
