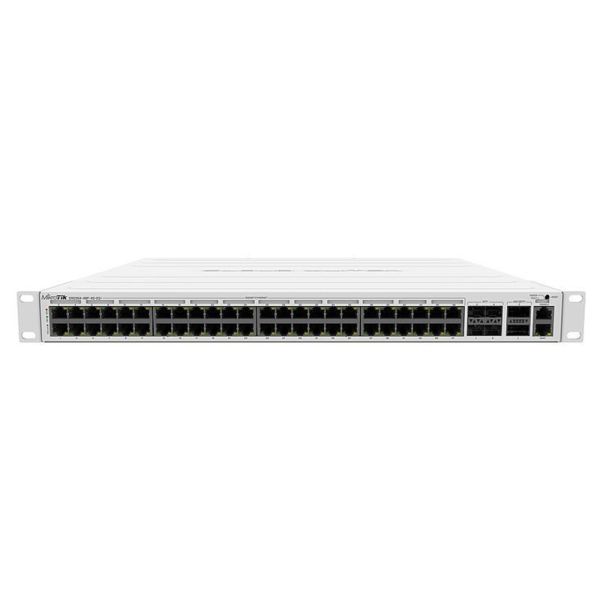

MikroTik CRS354-48P-4S+2Q+RM 48‑Port Gigabit PoE+ Cloud Router Switch with 4×10G SFP+, 2×40G QSFP+, 700W PoE Budget
Estimated delivery within UAE 1–2 working days
Delivery to other countries 3–5 working days
-
48 × 1 GbE RJ‑45 ports with PoE‑out (802.3af/at & passive)
-
4 × 10G SFP+ and 2 × 40G QSFP+ uplink ports
-
700 W total PoE budget (27 A @ 26 V or 13.2 A @ 53 V)
-
Switching throughput of 168 Gbps, capacity 336 Gbps, forwarding 235 Mpps
-
Single 100–240 V AC power supply, 4 fans cooling
-
1U rack form factor, dimensions 443 × 382 × 44 mm
-
Operating temperature –20 °C to +60 °C, MTBF ~200,000 h
-
Certifications: CE / EAC / RoHS, IP20
CPU & Memory
-
Architecture: MIPSBE
-
CPU: Qualcomm Atheros QCA9531 at 650 MHz
-
RAM: 64 MB
-
Flash storage: 16 MB
Switch Performance
-
Non-blocking throughput: 168 Gbps
-
Switching capacity: 336 Gbps
-
Forwarding rate: 235 Mpps
Ports & Interfaces
-
48 × 10/100/1000 RJ‑45 ports (all support PoE‑out)
-
1 × 10/100 RJ‑45 management port
-
4 × 10G SFP+ ports
-
2 × 40G QSFP+ ports
-
RJ‑45 console port
Power / PoE
-
Input voltage: 100–240 V AC
-
Typical (idle): ~ 85 W
-
Maximum (with attachments): up to 800 W
-
PoE‑out: supports IEEE 802.3af/at and passive PoE (26 V / 53 V)
-
Per-port output: up to 1000 mA @ 26 V or 570 mA @ 53 V
-
Total PoE budget: 700 W (27 A @ 26 V / 13.2 A @ 53 V)
-
Cooling: 4 fans with automatic control
Mechanical & Environmental
-
Form factor: 1U rackmount
-
Dimensions: 443 × 382 × 44 mm
-
Operating temperature: –20 °C to +60 °C
-
MTBF: approx. 200,000 hours
Certifications & Compliance
-
CE, EAC, RoHS
-
IP rating: IP20
