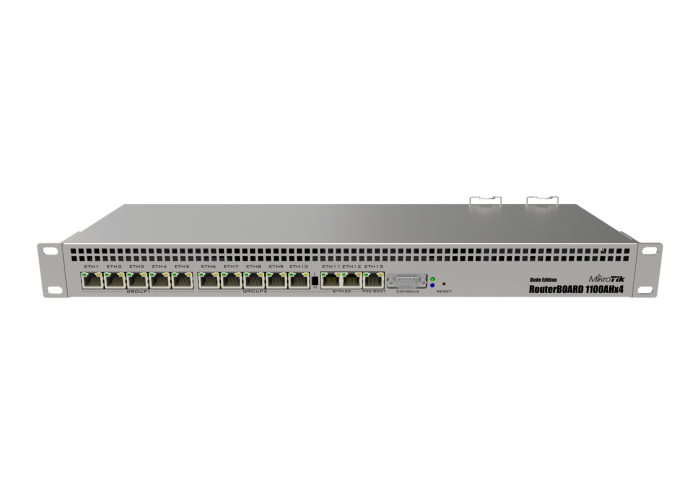

MikroTik Routerboard 13× Gigabit Ports, Quad‑Core 1.4 GHz, Dual Redundant PSU RB1100AHx4
Estimated delivery within UAE 1–2 working days
Delivery to other countries 3–5 working days
-
1U rackmount router with 13 Gigabit Ethernet ports
-
Quad-core AL21400 CPU @ 1.4 GHz and 1 GB RAM
-
Up to ~7.5 Gbps routing throughput with IPsec hardware acceleration to ~2.2 Gbps
-
Dual redundant power (AC + DC / PoE-in) with support for –48 V telecom supply
-
Passive cooling (fanless) design
MikroTik RB1100AHx4– Specifications
General / Overview
-
RouterOS license level 6
-
Designed for –40 °C to +70 °C ambient environments
CPU / Memory / Storage
-
CPU: Annapurna AL21400, 4 cores @ 1.4 GHz
-
RAM: 1 GB
-
Flash storage: 128 MB NAND
Ports & Connectivity
-
13 × 10/100/1000 RJ-45 Gigabit Ethernet ports
-
RS-232 serial console port
-
microSD slot
Power / Input & Consumption
-
Two AC inputs (100–240 V)
-
Two DC / PoE-in inputs: supports –48 V DC and 20–57 V for PoE-in (802.3af/at)
-
Max power consumption: ~20 W (typical)
-
Cooling: passive (no fans)
Performance / Throughput
-
Routing / forwarding throughput up to ~7.5 Gbps
-
IPsec hardware acceleration: ~2.2 Gbps (AES128)
-
Bridging test: ~606.5 kpps @ 1518 bytes (~7,365 Mbps)
