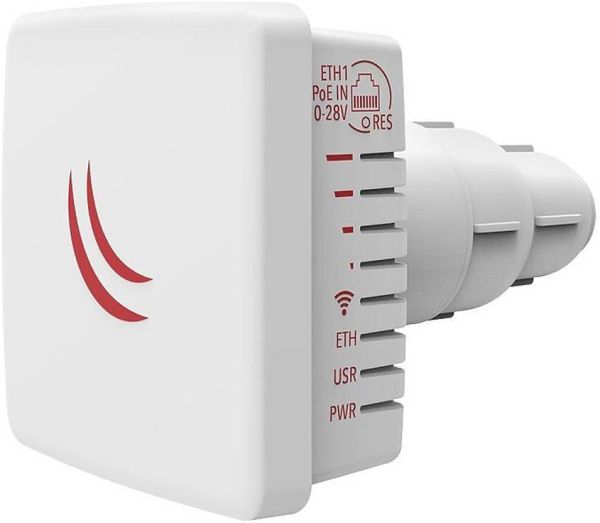

MikroTik RBLDF-5nD LDF 5 Dual‑Chain 5 GHz Outdoor Wireless Dish‑Feed Module 9 dBi Antenna, 10/100 Mb Ethernet, Passive PoE, RouterOS License Level 3
Estimated delivery within UAE 1–2 working days
Delivery to other countries 3–5 working days
-
Outdoor dish‑feed wireless module for 5 GHz, designed to mount in a satellite dish offset feed.
-
Dual‑chain 802.11a/n radio delivering up to ~300 Mbit/s in the 5 GHz band.
-
Built‑in 9 dBi antenna gain and compact 84×84×115 mm footprint for easy installation.
-
Single 10/100 Mb Ethernet port, passive PoE power input (10‑30 V) with ~6W consumption.
-
Operates in harsh environments with rated temperature range from –40 °C to +70 °C.
-
Supplied with RouterOS (Level 3 license) for advanced wireless link configuration.
-
Ideal for point‑to‑point (PTP) or dish‑based long distance links using 5 GHz band.
-
Model: RBLDF‑5nD (also known as LDF 5)
-
Architecture: MIPSBE
-
CPU: AR9344 - 600 MHz (single core)
-
RAM: 64 MB
-
Flash Storage: 16 MB
-
RouterOS License Level: 3
-
Wireless Band: 5 GHz only
-
Standards: IEEE 802.11a/n (dual‑chain)
-
Maximum Wireless Data Rate: up to 300 Mbit/s
-
Antenna Gain (integrated): 9 dBi
-
Number of Chains: 2
-
-
Ethernet Interface: 1 × 10/100 Mb/s RJ‑45 port
-
Power Input: Passive PoE (10‑30 V)
-
Maximum Power Consumption: ~6 W
-
Dimensions: 84 × 84 × 115 mm
-
Operating Temperature: ‑40 °C to +70 °C
-
Certifications/Approvals: CE, FCC, IC, EAC, RoHS
-
Intended Use: Outdoor wireless dish‑feed module, designed to mount in a standard 40 mm dish offset feed, using a satellite TV dish as the reflector for enhanced gain.
-
IP Rating: IP54 (weather‑resistant)
