Details

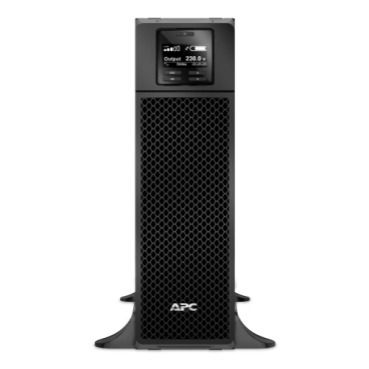

APC Smart-UPS SRT5KXLI On-Line Double-Conversion 5 kVA 4500 W, 12 AC Outlets
- Product Type: Uninterruptible Power Supply (UPS)
- Model: APC SRT5KXLI Smart-UPS On-Line
- UPS Type: Double Conversion Online
- Main Output Voltage: 230 V
- Other Output Voltages: 220 V, 240 V
- Main Input Voltage: 230 V
- Other Input Voltages: 220 V, 240 V
Specifications:
Power:
- Rated Power: 4500 W
- Rated Power (VA): 5000 VA
- Maximum Capacity Used: 100%
- Max Load: 4500 W
- Min-Max Load: 450-4500 W
Runtime & Efficiency:
- Run Time at Full Load: 3 min 59 sec
- Battery Recharge Time: 1.5 hours
- Efficiency: View Efficiency Graph
Battery:
- Battery Type: Lead-acid
- Battery Voltage: 192 V
- Battery Life: 3-5 years
- Replacement Battery: APCRBC140
- Extended Runtime: 1 (Additional runtime options available)
- Number of Battery Filled Slots: 2
- Number of Battery Free Slots: 0
- Battery Charger Power: 560 W
Connections & Communication:
- Output Connection Type:
- 6 x IEC 60320 C13
- 2 x IEC Jumpers
- 4 x IEC 60320 C19
- Preinstalled Device: Network Management Card 3 with Environmental Monitoring
- Emergency Power Off (EPO): Yes
- USB Compatible: Yes
- Communication Cable: Included
Physical Dimensions:
- Colour: Black
- Height: 43.2 cm
- Width: 13 cm
- Depth: 71.94 cm
- Weight: 54.43 kg
- Mounting Location: Front
- Mounting Mode: Rack-mounted with kit, Two-post mountable
- Mounting Preference: No preference
Input & Output:
- Input Voltage Limits: 100...275 V (adjustable at half load)
- Input Connector Type: 1 x Hardwire 3-wire (1P + N + E)
- Network Frequency: 40...70 Hz (auto-sensing)
- Bypass Type: Internal bypass (automatic and manual)
- Crest Factor: 3:1
- Harmonic Distortion: Less than 2%
- Output Wave Type: Sine wave
- Output Frequency: 50/60 Hz ± 3 Hz (synchronized to mains)
Certifications & Standards:
- Product Certifications:
- CE
- EAC
- IRAM
- RCM
- VDE
- Standards:
- EN/IEC 62040-1:2019/A11:2021
- EN/IEC 62040-2:2006/AC:2006
- EN/IEC 62040-2:2018
Environmental Specifications:
- Operating Altitude: 0 – 10,000 ft
- Ambient Temperature for Operation: 0°C to 40°C
- Ambient Temperature for Storage: -15°C to 45°C
- Storage Altitude: 0 to 15,240 m
- Relative Humidity (Operating & Storage): 0 – 95% (non-condensing)
- Acoustic Level: 55 dBA
- Heat Dissipation: 931 Btu/h
- IP Protection: IP20
Surge Protection:
- Surge Energy Rating: 480 J
Packing Information:
- Unit Type of Package 1: PCE
- Number of Units in Package 1: 1
- Package Dimensions:
- Height: 33 cm
- Width: 96 cm
- Length: 61 cm
- Weight: 63.599 kg
Provided Equipment:
- CD with Software
- Communication Cable
- Documentation CD
- Installation Guide
- Removable Support Feet
- Temperature Probe
- USB Cable
- Warranty Card
- Web/SNMP Management Card
More Information
GTIN | 731304301615 |
---|---|
Weight | 63.600000 |
Dimensions | 33*96*61 cm (HWL) |
Color | Black |
Manufacturer | APC |
Warranty | 1 Year |
Battery | Lead-acid battery |
Main Input Voltage | 230V |
