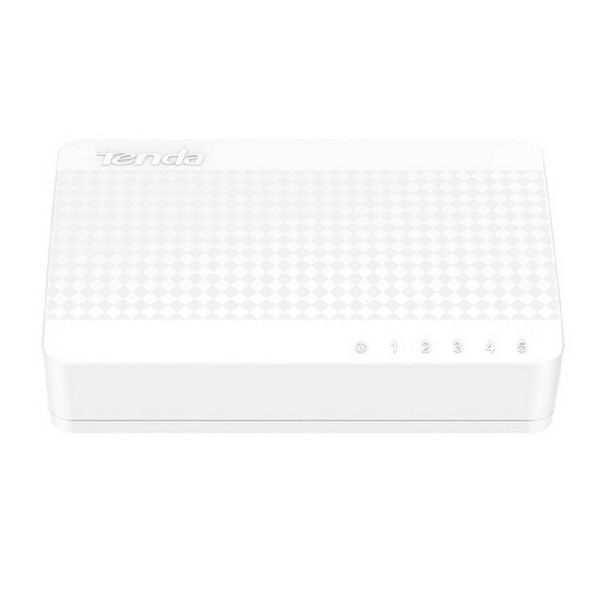

Tenda S105 5‑Port 10/100 Mbps Unmanaged Desktop Switch, Plug‑and‑Play
Estimated delivery within UAE 1–2 working days
Delivery to other countries 3–5 working days
-
Unmanaged 5‑port Fast Ethernet switch (10/100 Mbps)
-
Auto-negotiation and Auto MDI/MDIX on all ports
-
Plug‑and‑play — no configuration required
-
Store-and-forward switching with 1.0 Gbps switching capacity
-
Low power usage (max ~1.6 W)
-
LED indicators for power and link/activity
-
Supports wall mounting and desktop placement
General / Features
-
Product: Tenda S105, 5-port Fast Ethernet (10/100 Mbps) unmanaged switch
-
Ports: 5 × RJ45 with auto-negotiation and Auto MDI/MDIX
-
Switching capacity / backplane: 1.0 Gbps
-
Packet forwarding: 14,880 pps @ 10 Mbps, 148,800 pps @ 100 Mbps
-
MAC address table: 1,000 entries
-
Forwarding mode: Store-and-forward
-
Supports full/half duplex, auto-negotiation
Power & Consumption
-
External power adapter: 5 V DC, 0.6 A
-
AC input: 100–240 V, 50/60 Hz
-
Power draw: ~0.8 W (idle), up to ~1.6 W (max)
Physical & Environmental
-
Enclosure: Plastic
-
Operating temperature: 0 °C to 40 °C
-
Storage temperature: –40 °C to 70 °C
-
Operating humidity: 10% to 90% RH (non-condensing)
-
Storage humidity: 5% to 90% RH (non-condensing)
-
Certifications: CE, FCC, RoHS
Mounting / Other Features
-
Desktop placement, wall mountable
-
LED indicators: Power, and per-port Link/Activity
-
Plug-and-play, unmanaged
