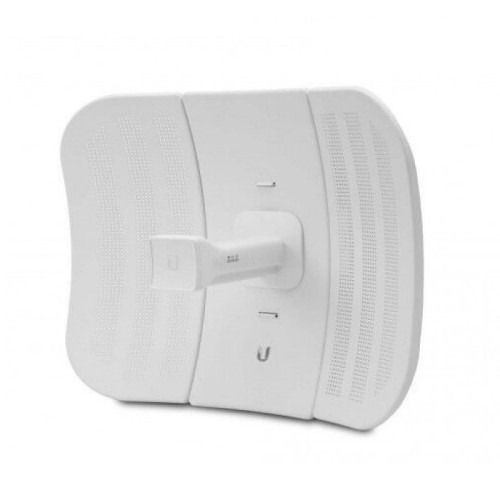

Ubiquiti LiteBeam M5 LBE-M5-23 – 5GHz 23dBi Outdoor airMAX CPE, Long-Range Wireless Bridge, Passive PoE, 100+ Mbps Throughput
Estimated delivery within UAE 1–2 working days
Delivery to other countries 3–5 working days
-
High-gain 23 dBi antenna for extended long-range connectivity
-
Operates on the 5 GHz frequency band (5150 – 5875 MHz)
-
Supports up to 100+ Mbps throughput in real-world conditions
-
Passive PoE powered (24V, 0.2A) with included adapter
-
Rugged outdoor design with IPX4 weatherproofing
-
Includes pole mounting kit for easy installation
-
Wide operating temperature range: -40°C to 70°C
-
Compliant with FCC, IC, CE standards and RoHS
Specifications
Physical / Electrical / Environmental
-
Dimensions: 362 x 267 x 184 mm (14.25 x 10.51 x 7.24")
-
Weight: 750 g (24.11 oz)
-
Mounting Kit: Pole Mounting Kit (Included)
-
Max. Power Consumption: 4W
-
Power Supply: 24V, 0.2A PoE Adapter (Included)
-
Power Method: Passive Power over Ethernet (Pairs 4, 5+; 7, 8 Return)
-
Operating Temperature: -40 to 70° C (-40 to 158° F)
-
Operating Humidity: 5 to 95% Noncondensing
-
Shock and Vibration: ETSI300-019-1.4
-
ESD/EMP Protection: ±24 kV Contact / Air
-
Wind Survivability: 200 km/h (125 mph)
-
Wind Loading: 176.86 N @ 200 km/h (39.76 lbf @ 125 mph)
-
Enclosure Characteristics: Outdoor UV Stabilized Plastic
-
Regulatory Compliance: FCC, IC, CE
-
RoHS Compliance: Yes
System Information
-
Processor: MIPS 74K
-
Memory: 64 MB
-
Networking Interface: (1) 10/100 Ethernet Port
Antenna Information
-
Operating Frequency: Worldwide: 5150 – 5875 MHz; USA: 5725 – 5850 MHz
-
Output Power: 25 dBm
-
Gain: 23 dBi
-
Max. VSWR: 1.5:1
Regulatory / Compliance Information
-
Wireless Approvals: FCC, IC, CE
-
RoHS Compliance: Yes
