UNV NVR302-16B-IQ – 16-Channel 1U Network Video Recorder (IQ Series)

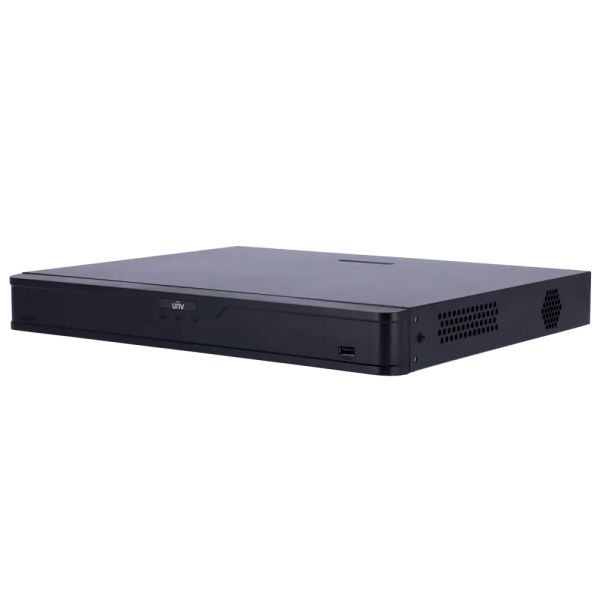

The UNV NVR302-16B-IQ is a high-performance 1U rack-mountable network video recorder from Uniview’s IQ Series. Designed for mid-sized to advanced IP surveillance systems, it supports up to 16 IP video channels and dual SATA HDD bays (up to 10 TB each), making it ideal for professional installations requiring high-capacity storage, intelligent analytics, and seamless 4K recording.

Video Decoding & Display

This NVR supports Ultra 265, H.265, and H.264 video formats with dual decoding modes:

• Smart Off: Up to 2 × 12MP @30fps or 10 × 1080P @30fps

• Smart On: Up to 2 × 4K @30fps or 8 × 1080P @30fps

Maximum supported resolution is 8192 × 4096 per channel. HDMI output supports 4K @30Hz, while VGA supports Full HD @60Hz. The live view interface offers flexible layouts from 1 to 16 windows, including corridor mode options.

Audio & Video I/O

• IP Video Input: 16 channels

• Audio Input/Output: 1 RCA input / 1 RCA output

• Two-way Audio: Supported via RCA ports

Network Performance

• Incoming bandwidth: 160 Mbps

• Outgoing bandwidth: 128 Mbps

• Remote users: Up to 128 concurrent sessions

• Protocols: Supports IPv4/IPv6, HTTPS, SNMP, RTSP, P2P, and more

• Browser compatibility: IE10/11, Chrome 45+, Edge 79+, Firefox 52+

Smart Features & AI Analytics

Advanced video content analysis (VCA) includes:

• Face Detection

• Smart Intrusion Prevention (SIP): Cross-line, intrusion, area entry/exit

• Ultra Motion Detection (UMD)

• Vehicle and People Detection

• People Counting and Crowd Monitoring

• Traffic Monitoring, Heat Maps, and AcuSearch

Supports VCA search by vehicle, person, or general attributes. Up to 5 vehicle picture libraries with 25,000 total images are supported.

Recording & Playback

• Recording resolution up to 12MP

• Synchronous playback of up to 16 channels

• Snapshot support via FTP, event, or schedule

Alarm & Events

• General Alarms: Motion detection, tampering, scene change, object left/removed, human detection, video loss

• Alert Alarms: IP conflict, disk failure, illegal access, storage full, and more

• Alarm I/O: 8 inputs / 2 outputs

Storage & Interfaces

• SATA: 2 × SATA (up to 10 TB each, 20 TB total)

• USB Ports: 1 × USB 2.0 (front), 1 × USB 3.0 (rear)

• RS485: 1 port

• Network Ports: 1 × RJ45 (Gigabit)

• PoE: 16 × 10/100 Mbps RJ45 ports (IEEE 802.3af/at)

• PoE Power Budget: 30W per port, 240W total

Design & Reliability

• Power Supply: 100~240V AC

• Power Consumption: ≤12W (without HDD)

• Operating Temperature: -10°C to +55°C

• Humidity: ≤ 90% (non-condensing)

• Dimensions: 380 × 322 × 53 mm

• Weight: ≤ 2.7 kg (without HDD)

Certifications

Compliant with CE, FCC, UL, RoHS, and WEEE standards.
