Epson PowerLite L730U Long Throw 3LCD Laser Projector – WUXGA, 7000 Lumens, HDMI, USB, RJ-45, Wireless LAN – Ideal for Digital Signage & Education

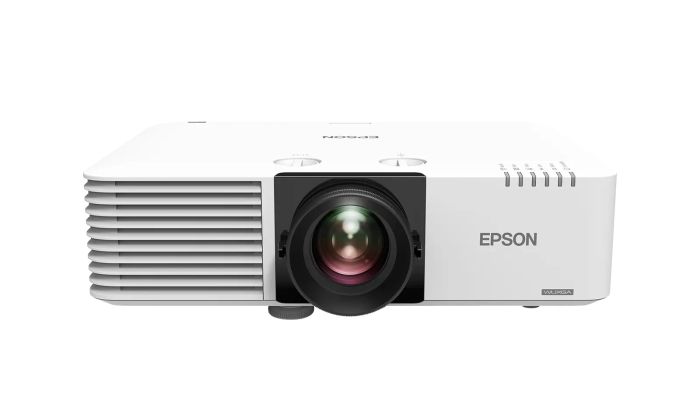

Epson PowerLite L730U

High-Brightness WUXGA 3LCD Laser Projector

The Epson PowerLite L730U delivers bright, vivid images with exceptional color accuracy, making it ideal for large venues, classrooms, boardrooms, and digital signage. Powered by a long-lasting laser light source and advanced 3LCD technology, this projector ensures reliable, high-quality performance with flexible installation options.

Key Features

• Projection System: 3LCD Technology with RGB liquid crystal shutter

• Native Resolution: WUXGA (1920 x 1200), Full HD enhancement

• Brightness:

  • White Light Output: Up to 7,000 lumens

  • Color Light Output: Up to 7,000 lumens
    (4,900 lumens in economy mode)

• Contrast Ratio: Over 5,000,000:1

• Aspect Ratio: 16:10 (Supports 21:9 and 16:6 ultra-wide formats)

• Color Reproduction: Up to 1.07 billion colors with 10-bit video processing

Laser Light Source

• Type: Laser

• Lifespan:

  • 20,000 hours (Normal Mode)

  • 30,000 hours (Eco Mode)

Optical Specifications

• Zoom Ratio: Manual, 1.0 – 1.6 (Throw Ratio: 1.35 – 2.20:1)

• Lens Shift: Manual

  • Vertical: ±50%

  • Horizontal: ±20%

• Focus: Manual

• Screen Size: 50" – 500"

• Projection Distance:

  • Wide: 1.4 m – 14.8 m

  • Tele: 2.4 m – 23.8 m

• Lens Type: Optical, F Number 1.5 – 1.7, Focal Length 20 mm – 31.8 mm

Connectivity

• Interfaces:

  • 2× HDMI (HDCP 2.3)

  • VGA In (2x) / VGA Out

  • USB 2.0-A / USB 2.0

  • RS-232C, Ethernet (10/100 Base-T)

  • Wireless LAN (802.11a/b/g/n/ac), Miracast

  • HDBaseT, Audio In/Out (Jack plug)

  • HDMI Out, USB Playback

• Network Protocols: HTTPS, IPv6, SNMP, PJLink, ESC/VP.net

• Control Compatibility: Crestron, Extron, AMX, Control4

Advanced Features

• 2D & Video Color Modes: Cinema, Dynamic, Presentation, sRGB, DICOM SIM

• Image Adjustments: Keystone (H/V ±30°), Arc Correction, Quick Corner

• Projection Capabilities: Split Screen, Edge Blending, Super Resolution, Ultra-wide display

• Software Support: Epson iProjection App (Ad-hoc & Infrastructure mode)

• Audio: Built-in 10W speaker

• Security: Password protection, Kensington lock, wireless LAN security

• Mounting Options: Desktop or ceiling-mounted

General Specifications

• Power Consumption:

  • Normal: 287W | Peak: 345W

  • Eco: 187W | Eco Peak: 258W

  • Standby: 0.3W

• Noise Level:

  • Normal: 38 dB(A)

  • Economy: 27 dB(A)

• Dimensions (W x D x H): 440 × 339 × 136 mm

• Weight: 8.4 kg

• Operating Environment:

  • Temperature: Storage -10°C to 60°C

  • Humidity: Operation 20–80%, Storage 10–90%

Included in the Box

• Projector (main unit)

• HDMI Cable

• Power Cable

• Remote Control (with batteries)

• Cable Cover

• User Guide

• Warranty Documents

Applications

Perfect for use in:

• Boardrooms & Meeting Rooms

• Auditoriums & Classrooms

• Projection Mapping

• Retail Signage

• Visitor Attractions

Environmental Note

If installing in environments with heavy oil smoke, chemical vapors, or where aroma oils are burned (e.g., events or stage effects), material degradation over time may cause safety risks. Contact Epson support for installation advice in such conditions.

TCO Certified: For more information, visit: TCO Certified
